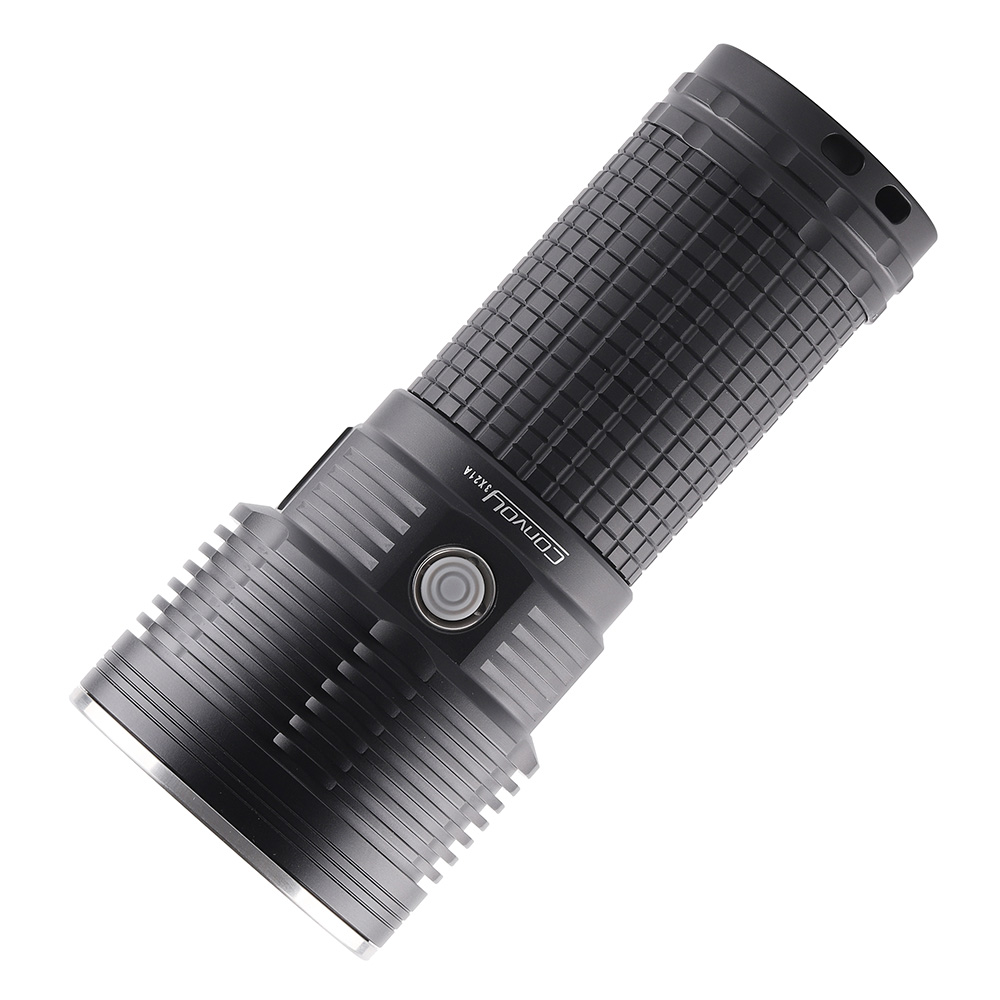

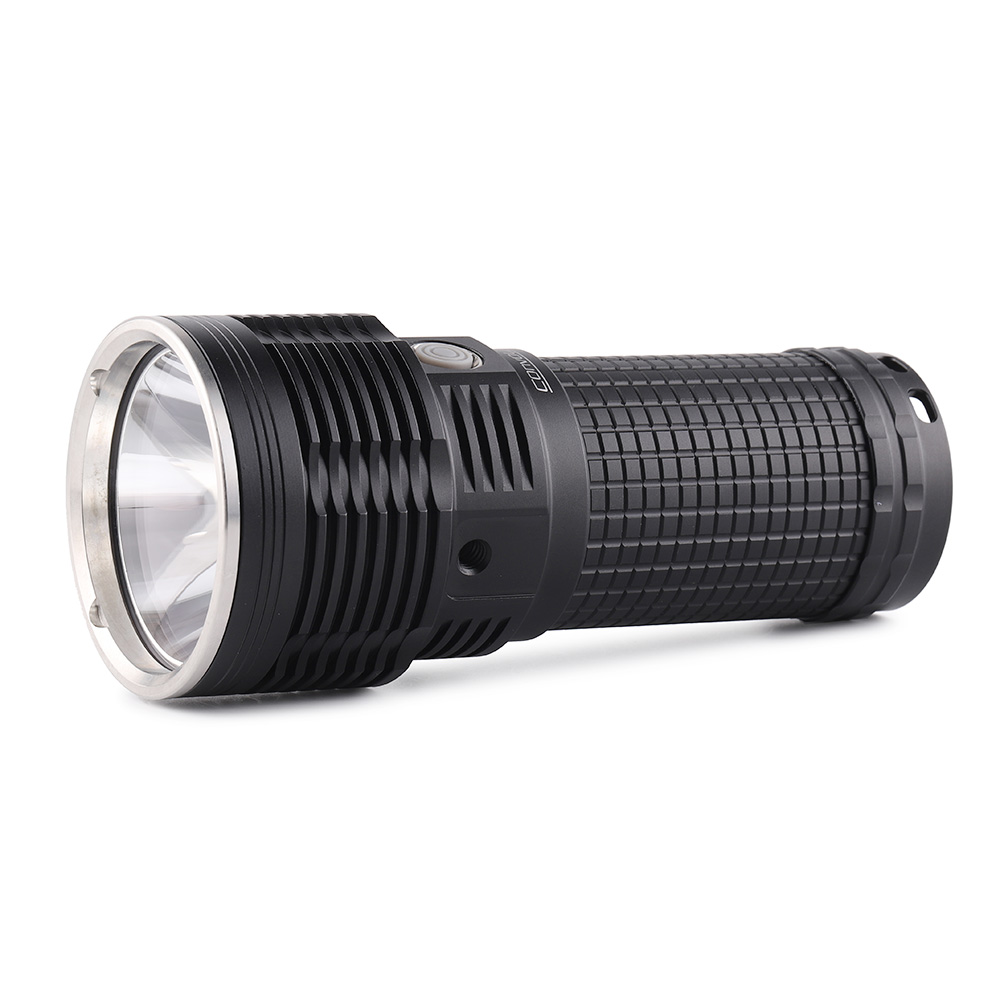

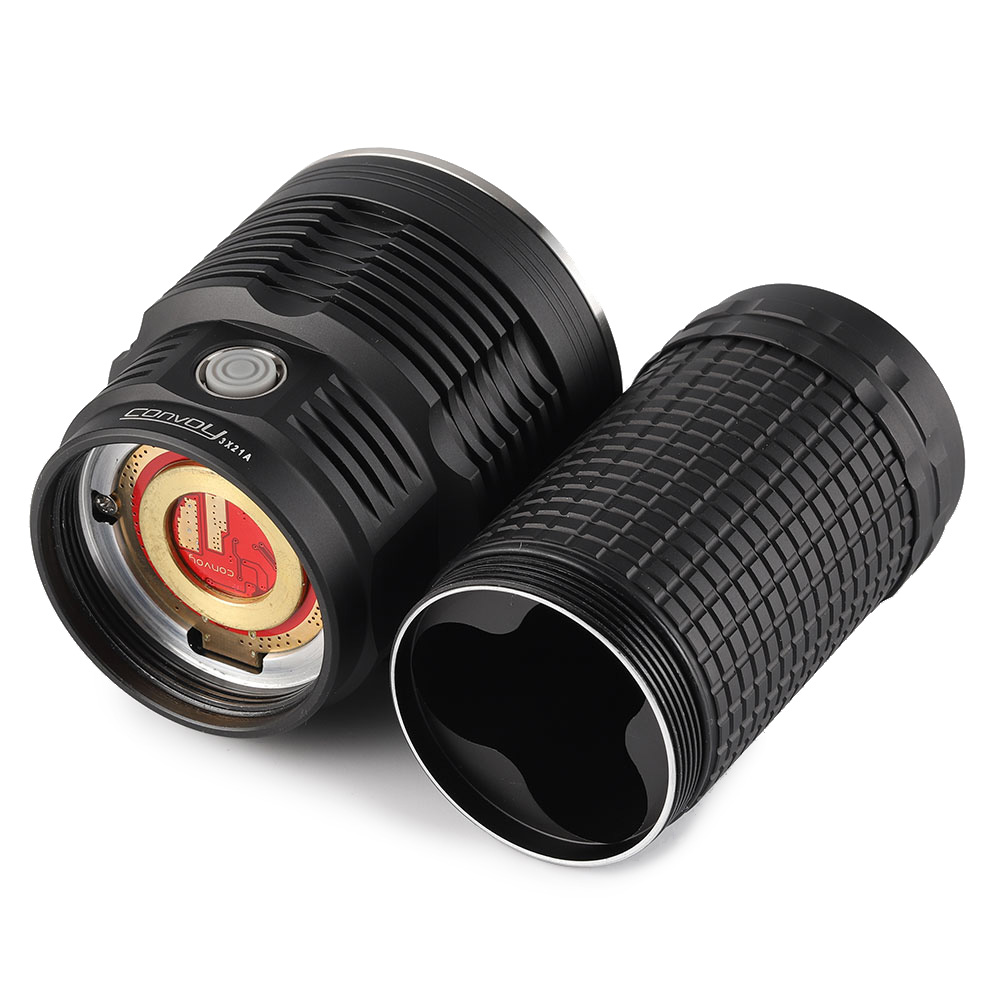

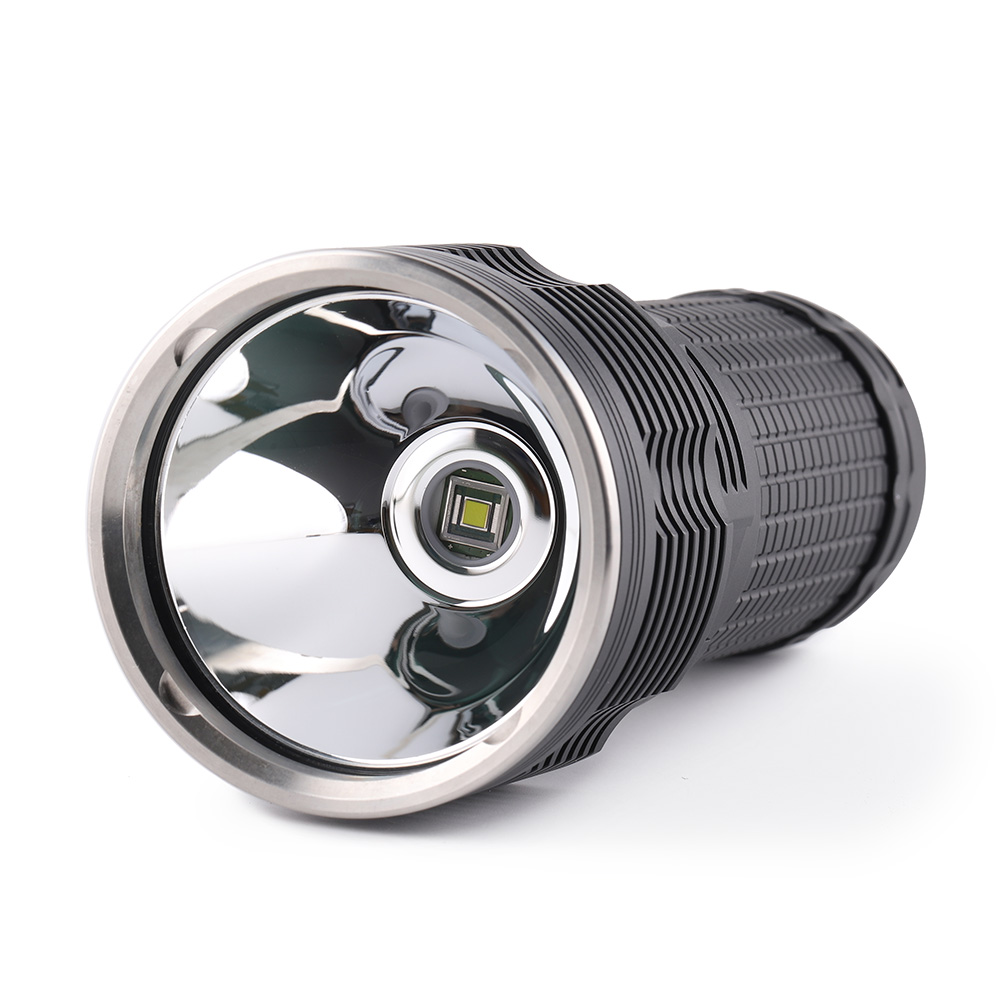

Convoy 3X21A black 21700 flashlight
| Construction | Material: | Aluminium alloy body, The surface is treated by anodic oxidation. |
| Lens type: | Ar-coated glass lens | |

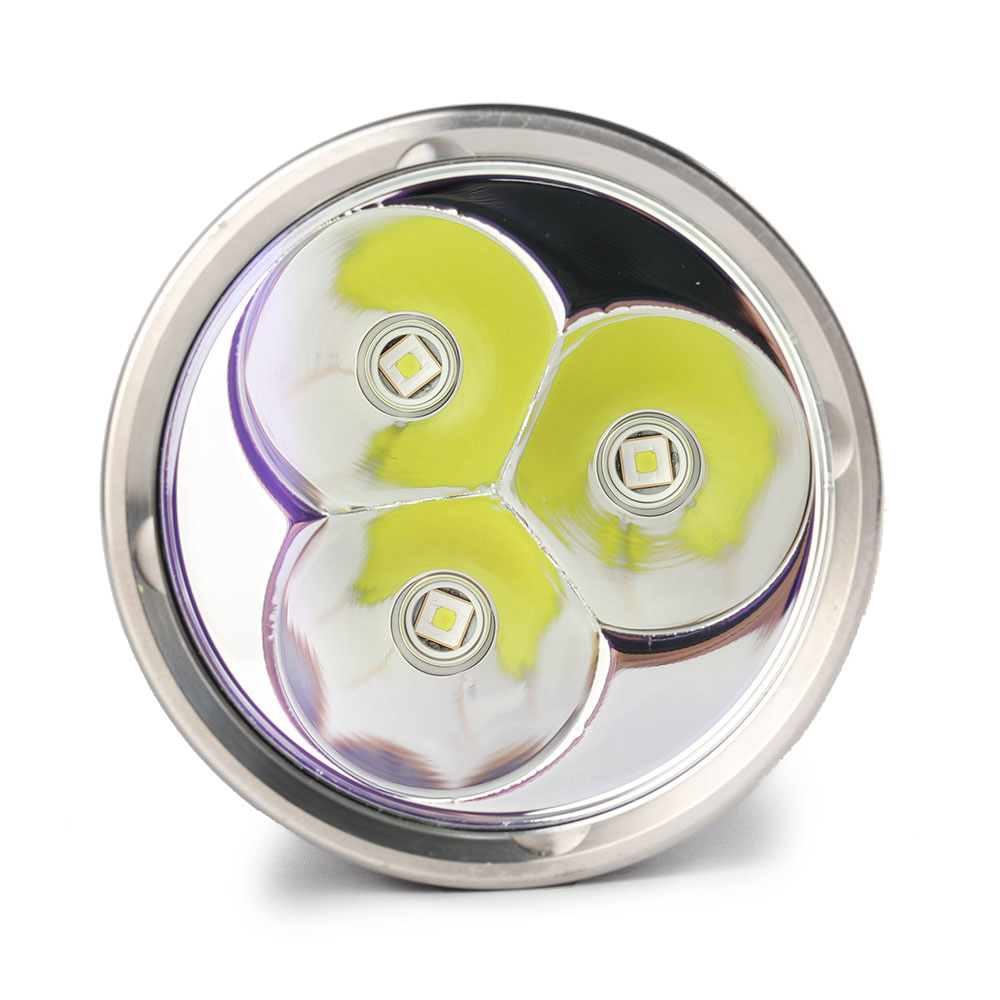

| Reflector: | made of aluminium alloy, the reflective surface is vacuum-coated. | |
| smooth | ||
| LED MCPCB: | made of copper. DTP thermally conductive structure. 3.0 W/(m·K) thermal grease below the MCPCB. |
|
| Head structure: | integrated type (Best structure for conducting heat, but please note that fast heat transfer does not mean fast heat dissipation, which depends on the surface area of the flashlight.) | |
| Switch: | The electronic switch is located on the side of the head, pay attention to the flashlight using the electronic switch has standby current, if it is possible that you will not use the flashlight for more than a week, please loosen the tail of the flashlight to avoid the risk of battery damage. | |

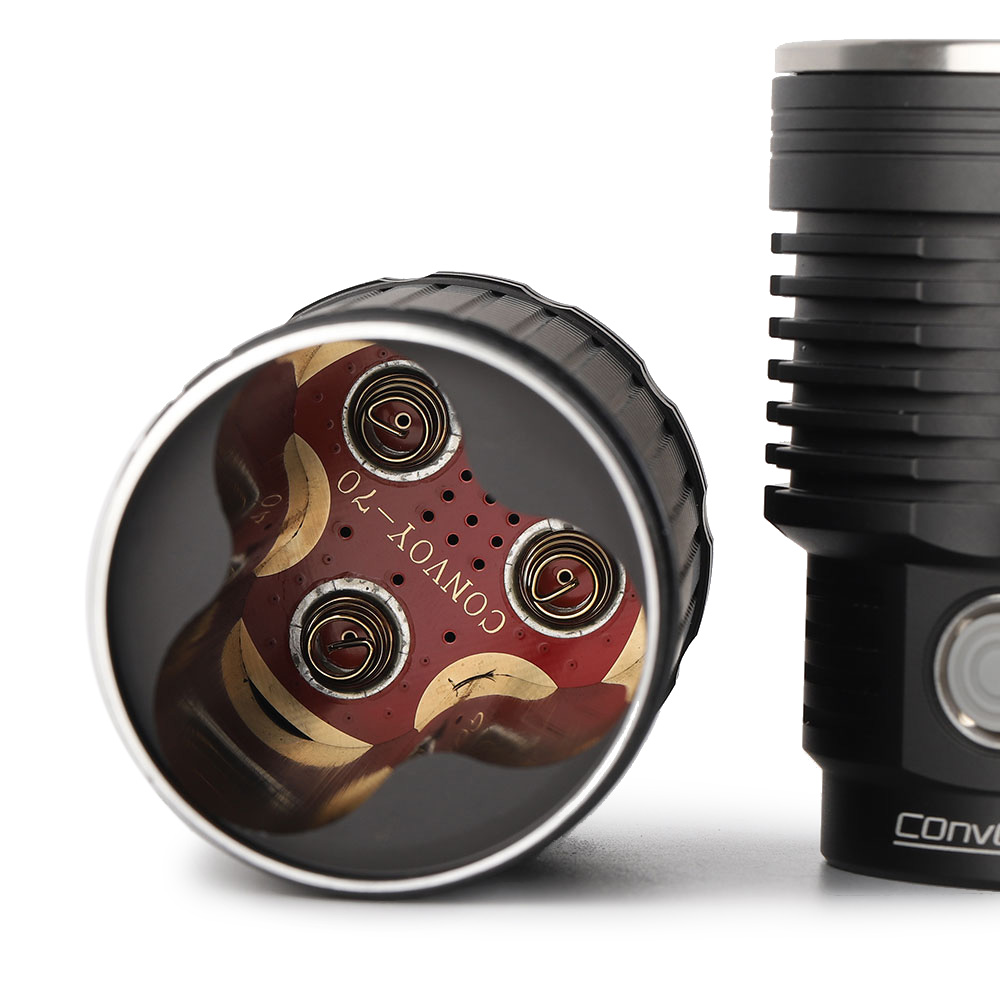

| Tail: | nickel-plated phosphor copper spring inside, it can bear 10A current. | |
| Electro&optical parameters | Driver output: | 3V 18A linear |
| 3V 25A buck | ||
| Driver efficiency: | 90-95% | |
| Charging: | 5V 3A Type-C port (3V 18A linear) | |
| PD 18W (3V 25A buck) | ||
| Reverse charging: | None (3V 18A linear) | |
| PD 18W (3V 25A buck) | ||
| Mode: | See below for details | |
| Flux: | ? | |
| Illumination distance: | ? (ANSI standard) | |
| Runtime: | ? | |
| Related features | Low voltage warning: | Yes |
| Reverse polarity protection: | Yes | |
| Reverse charging function | No | |
| Mode memory: | Yes | |
| Temperature control function： | Yes , As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up.When the flashlight works for a long time under the maximum brightness, the surface temperature will rise to 80-90 degrees Celsius, please be careful of burns. | |
| Tailstand: | Yes | |
| About the battery | Battery included: | No |
| Required battery type: | INR or IMR 21700 lithium cell or battery | |
| Required battery quantity | 3 pieces | |
| Size & weight | Length: | 158.4mm |
| Diameter: | head 69mm , body 51.8mm | |
| Weight: | Net weight 466g Gross weight 532g (include package) |
|

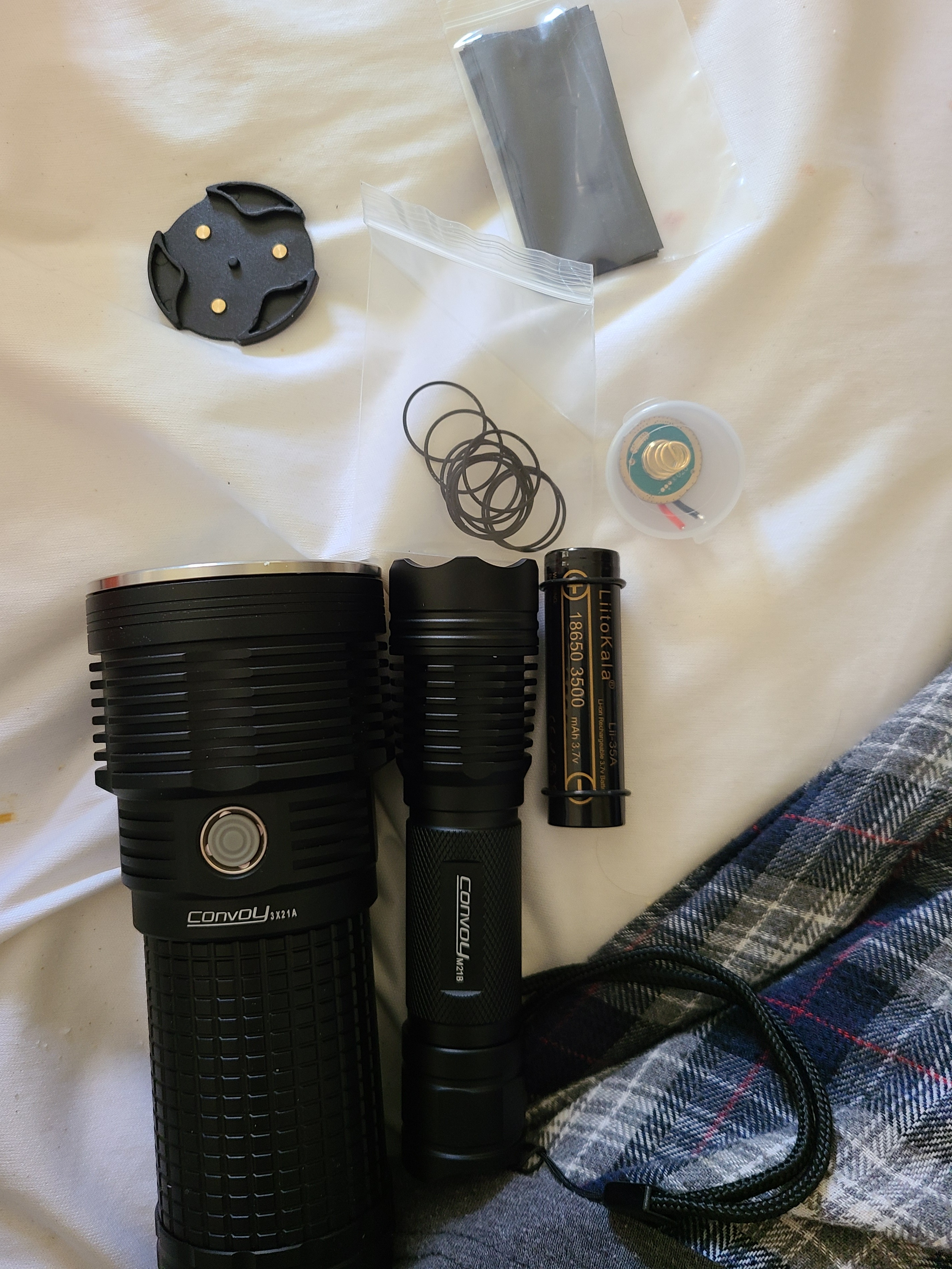

| Accessory: | 1* flat-to-top battery adapter | |
Mode operation instructions:
1.click the button ——> flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down
2.flashlight off, press the button ——> moonlight mode 0.2% [This brightness will not be remembered]
3.flashlight on or off, 2-click the button ——> turbo 100%，Double-click again to return to the previously set brightness.
4.flashlight off,3-click the button ——> strobe
5.flashlight off,4-click the button ——> tactical mode, only 100% ,4-click the button again to quit tactical mode.
6.flashlight off,5-click the button ——> voltage detection (* means "flash" , *** pause ******* means 3.7V, )
7.flashlight off,6-click the button ——> normal ramping mode switch to 4modes 1%-10%-40%-100%
8.flashlight off,10-click the button ——> Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.
The flashlight has low voltage protection and temperature control protection.
