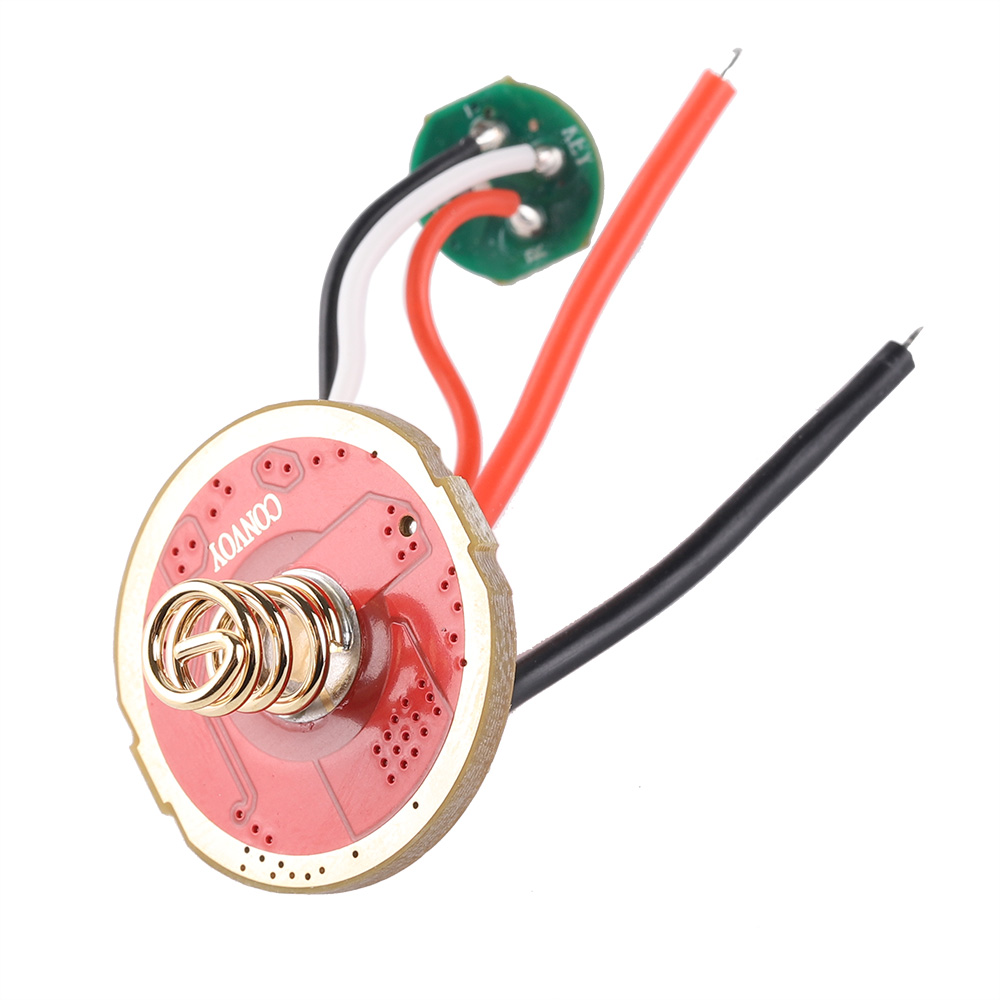

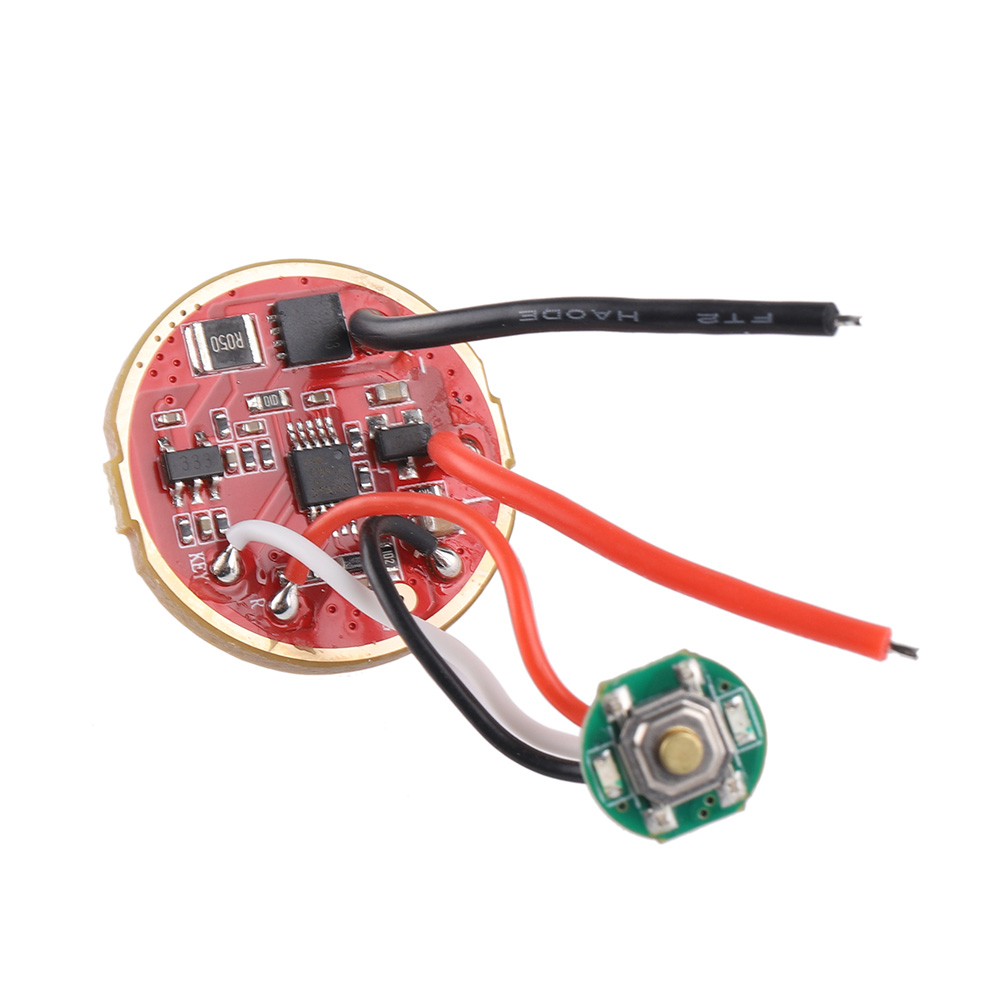

Driver for convoy H1, output current 3A

WISHLIST
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews

Diameter 21mm

weight 2.4g

Input 3-4.2V

Output 3000mA max

Mode operation instructions:

  1. click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down
  2. flashlight off, press the button  ——>  moonlight mode 0.2%  [This brightness will not be remembered]
  3. flashlight on or off, 2-click the button  ——>  turbo 100%
  4. flashlight off,3-click the button   ——>  strobe
  5. flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.
  6. flashlight off,5-click the button   ——>  voltage detection  (* means "flash" ,  *** pause ******* means 3.7V, )
  7. flashlight off,6-click the button   ——>   ramping mode switch to   4modes 1%-10%-40%-100% 8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.

The flashlight has low voltage protection and temperature control protection.
