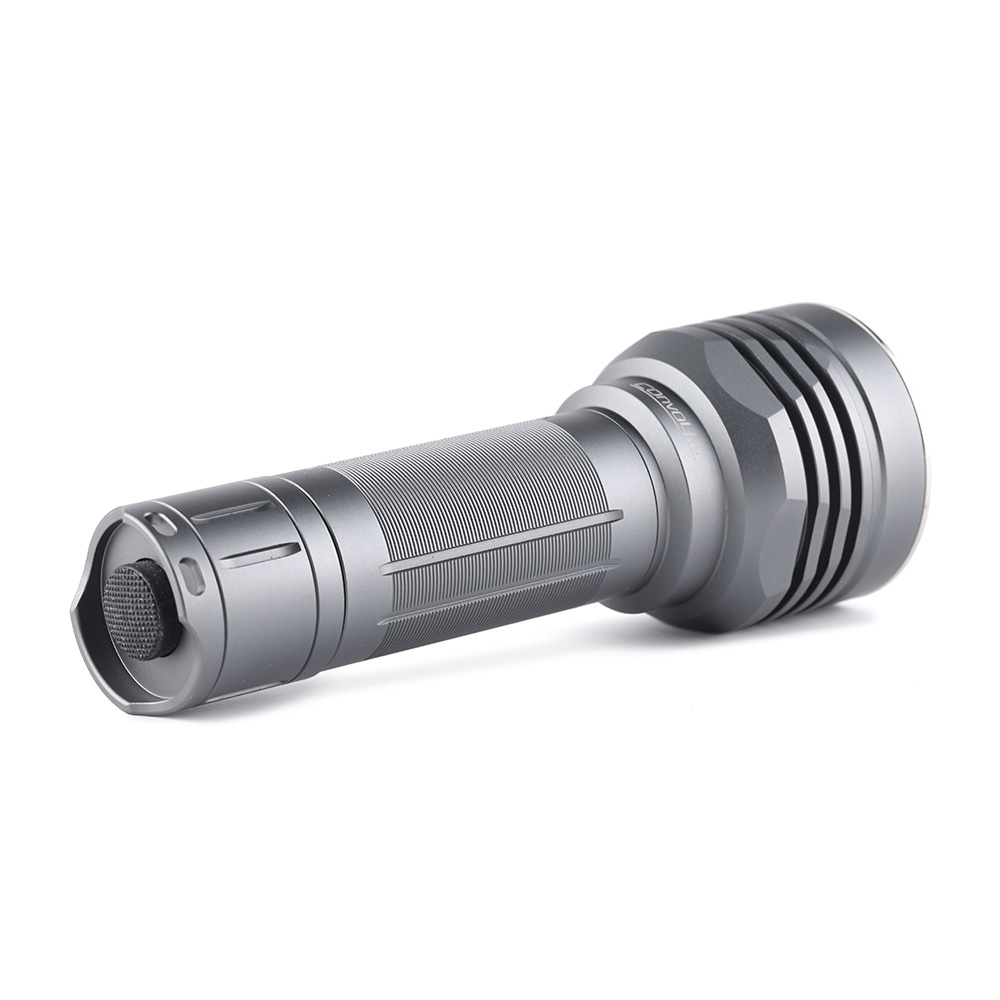

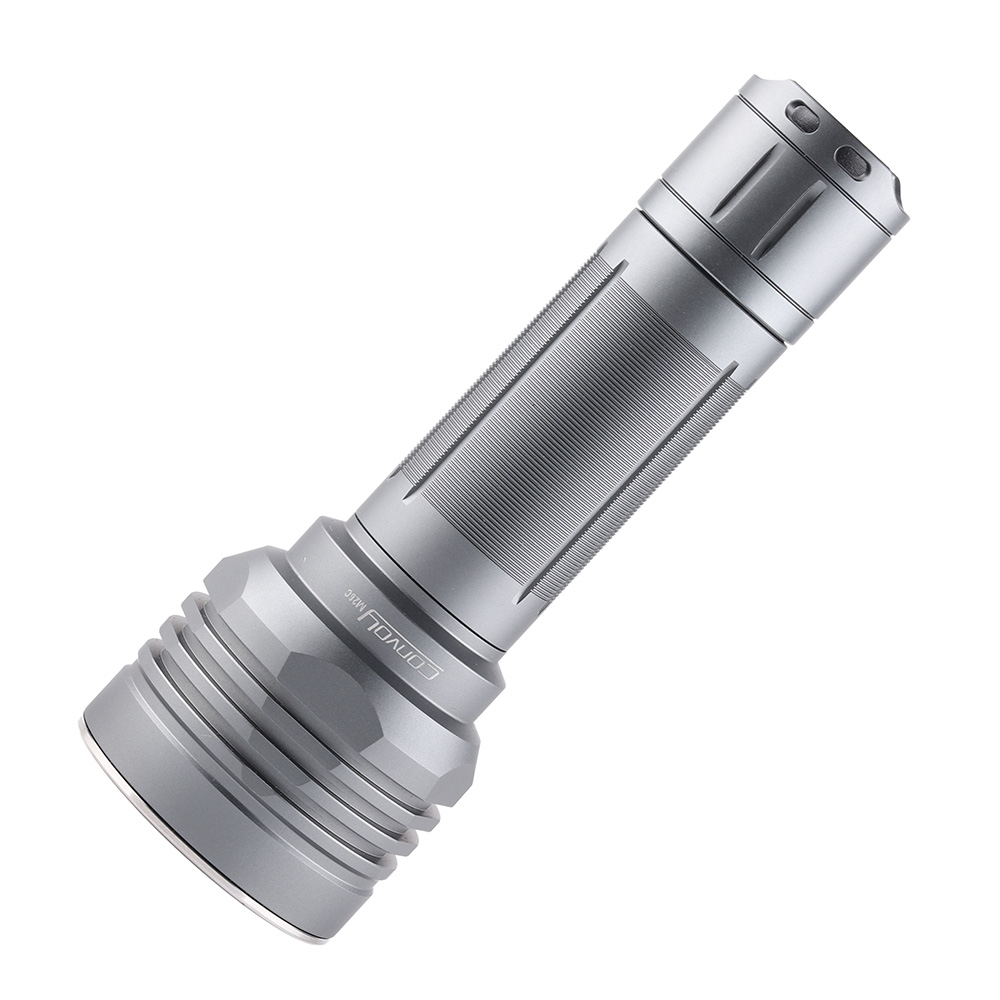

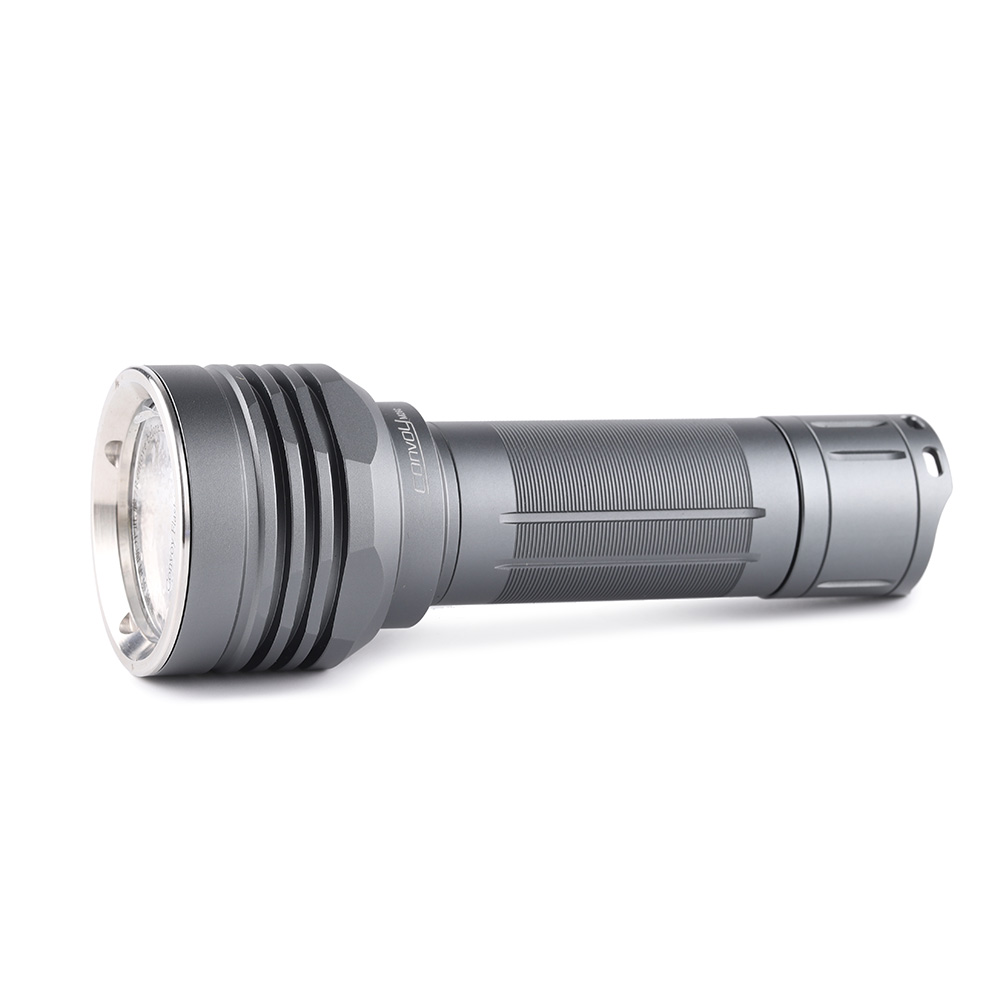

Convoy M26C gray 26650 flashlight

WISHLIST
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews

Parameter

Material: aluminum alloy

Low voltage warning: yes

Reverse polarity protection: yes

Lens Type: ar-coated lens

Reflector: Smooth for SST40 / SFT40,
                 orange peel for XHP70.3 Hi / GT FC40

Switch position: tail

Mode memory: yes

Tail stand: yes

Output current:  SST40 6amps

                          SFT40 8amps

                          XHP70.3 Hi 5amps

                          GT FC40 2.5amps

Battery charger includes: not included

Battery type required: 1*26650 unprotected battery (65mm length)

Number of batteries required: 1

Size: Head/body diameter: 55mm/33.5mm ,length: 155mm

Product weight: 264g

Weight with box: 359g

Packing size: 181 * 87 * 59mm



Driver (12groups):

It can control the flashlight temperature not to exceed 55 degrees Celsius,

If the flashlight temperature is below 55 degrees Celsius, it will output full current. If it is above 55 degrees Celsius, it will constantly adjust the current so that the flashlight will not overheat.



1.click the switch to turn the flashlight on/off,tap the switch to select mode
2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)
   Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.
       -------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)
       -------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)
       -------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)
       -------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)
       -------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)
       -------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)
       -------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)
       -------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)
       -------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)
       -------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)
       -------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)
       -------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)
   Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.

battery-check  instructions:
 <2.95V    1 flash,
2.95-3.25V  2 flashes,
3.25-3.55V  3 flashes,
3.55-3.85V  4 flashes,
>3.85V     5 flashes
