• Mode: 12groups ,Max current output 0.5A (AA battery),Max current output 1.5A (14500 lithium battery),
            3modes for red light，AA battery(50mA low - 0.35A mid - 1.7A high),  14500 battery (25mA low - 0.6A  mid - 2A high)
• Mode memory: yes
• Maximum efficiency: 75%(4modes)/90%(12groups)
• Battery: 1 * AA / 14500  (not included)
• Lighting range: less than 50meters
• Material: aluminum alloy
• Waterproof grade: IPX6

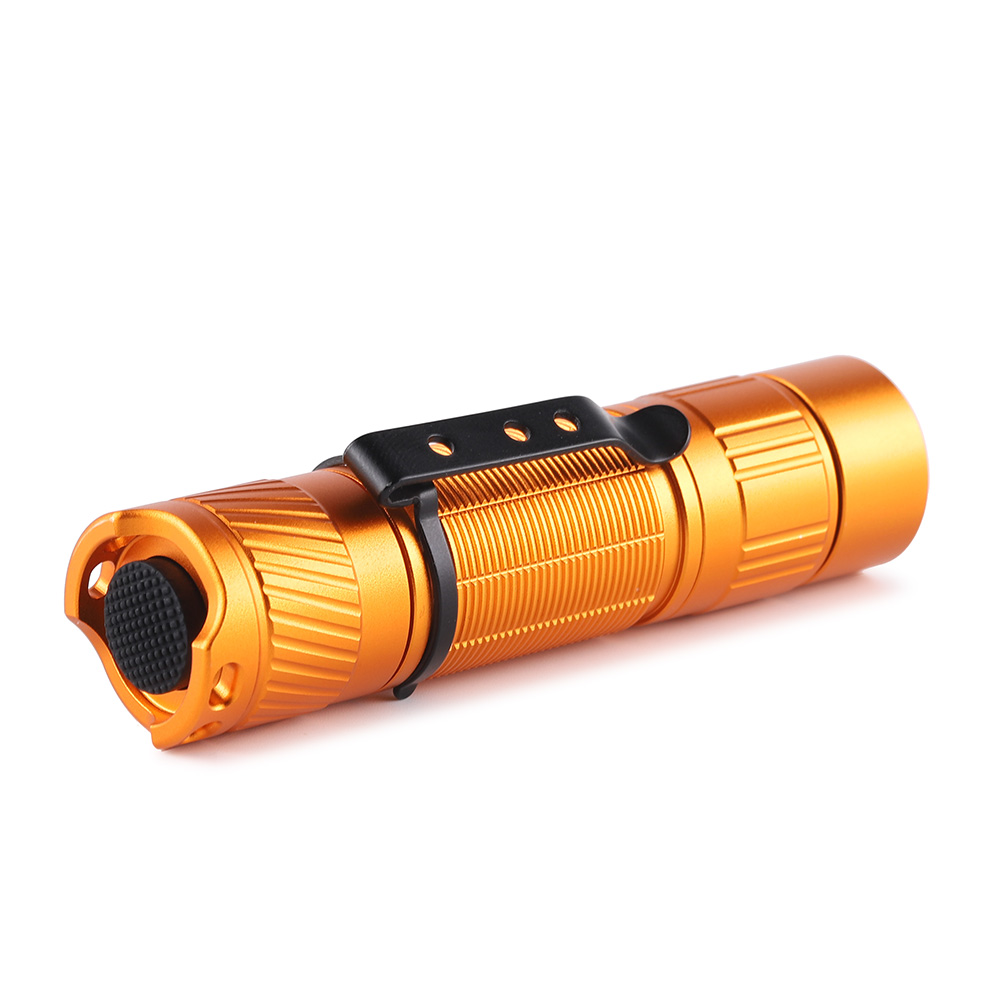

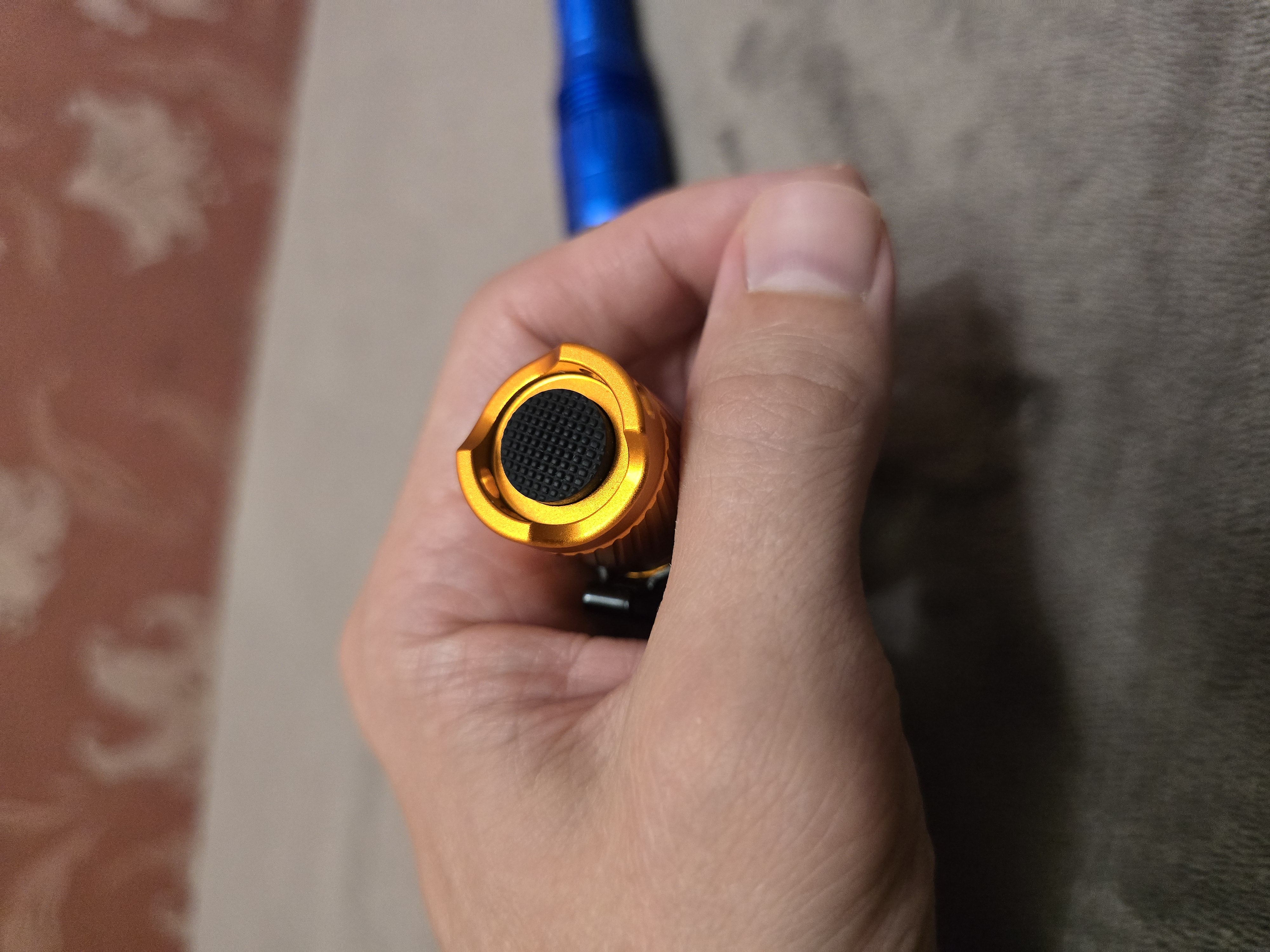

• Switch type: reverse

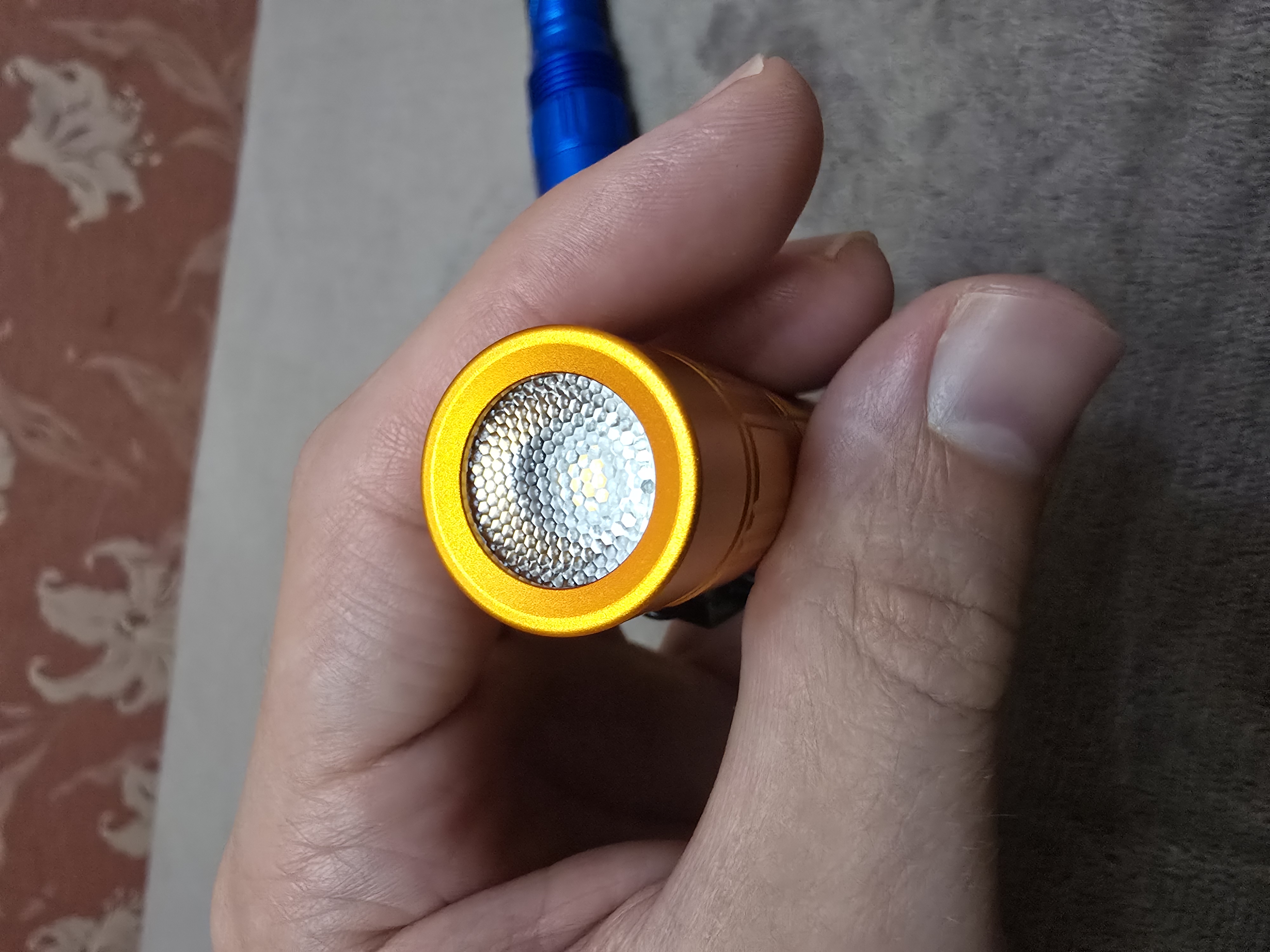

• Lens : 60deg TIR lens
• Size: 21mm(diameter) ,87.8mm(length)
• Weight:47g (only flashlight ,not include the clip/lanyard/package)
• Accessory: 1*clip,1*lanyard

Drive parameters

1. The flashlight is powered by a 1.5V battery or a 4.2V lithium battery. Switch the flashlight on or off by the tail switch (full click) or switch mode (Half-press).

The maximum output current is 0.5A when using a 1.5V battery, and the maximum output current is 1.5A when using a 4.2V lithium battery

2. Battery judgment function: When the voltage is above 2V, it is judged as a 4.2V battery, and when the voltage is below 2V, it is a 1.5V battery. It does not turn on when powered on by 2-2.8V.

3. Low voltage protection. When using a 4.2V battery, the voltage will flash 3 times slowly when the voltage is lower than 3V, and it will automatically shut down when the voltage is lower than 2.8V. When using a 1.5V battery, there is no low voltage protection.

At 4.2V, strobe (100%), slow flashing (30%), beacon (30%), battery detection (1%) SOS (20%), the above is the maximum brightness ratio.

if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

   Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

       -------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (1%、10%、30%、100%)

       -------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (1%  10%、35%、100%、strobe、biking、batcheck)

       -------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%、35%、10%、1%)

       -------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%  20%、100%、strobe、biking、batcheck)

       -------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%、20%、100%)

       -------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%、20%、1%)

       -------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (1%  10%、50%、strobe、biking、batcheck)

       -------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(1%、10%、50%)

       -------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%、10%、1%)

       -------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (20%、100%)

       -------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%、20%、strobe)

       -------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100%)

   Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.

battery-check  instructions:

 <2.95V    1 flash,

2.95-3.25V  2 flashes,

3.25-3.55V  3 flashes,

3.55-3.85V  4 flashes,

>3.85V     5 flashes

The drive circuit will operate between 0 and 1.9 volts or between 2.8 and 4.2 volts.

As for the temperature control function, the temperature control functions in the high brightness state when only the lithium battery is used.When the temperature reaches 52℃, the current will begin to decrease slowly, by 1% per second, to a minimum of 30%.When the temperature is lower than 48 ℃, the brightness will rise slowly, rising by 1% every 8 seconds.

When the voltage of the lithium battery is less than three volts, the flashlight flashes twice per hertz.If the voltage of the lithium battery is less than 2.8 volts, the flashlight will turn off directly.If the user uses AA battery, The flashlight does not have low voltage protection. It will drain the batteries until they are dead.
