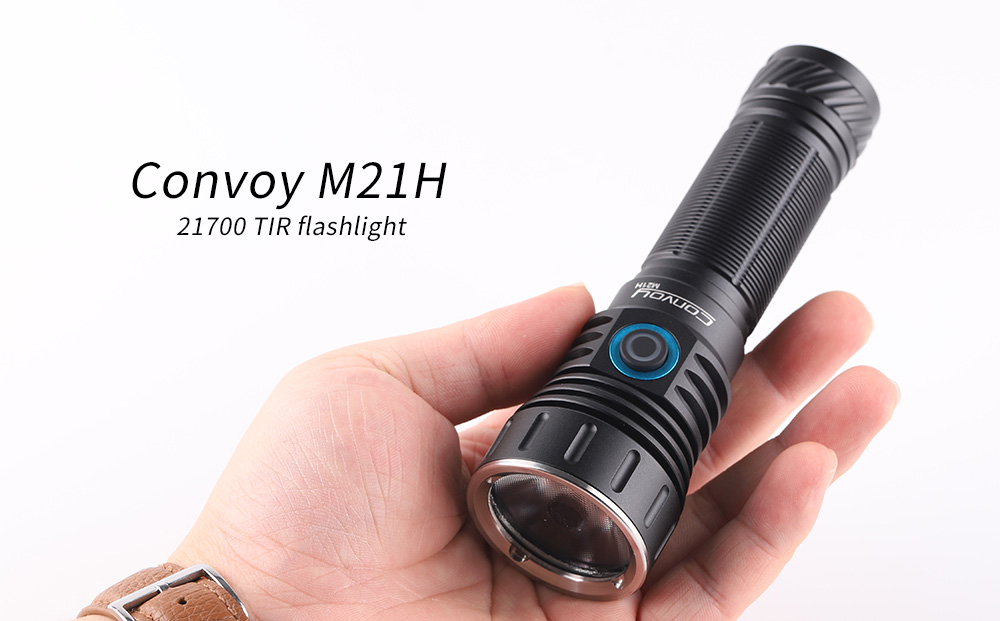

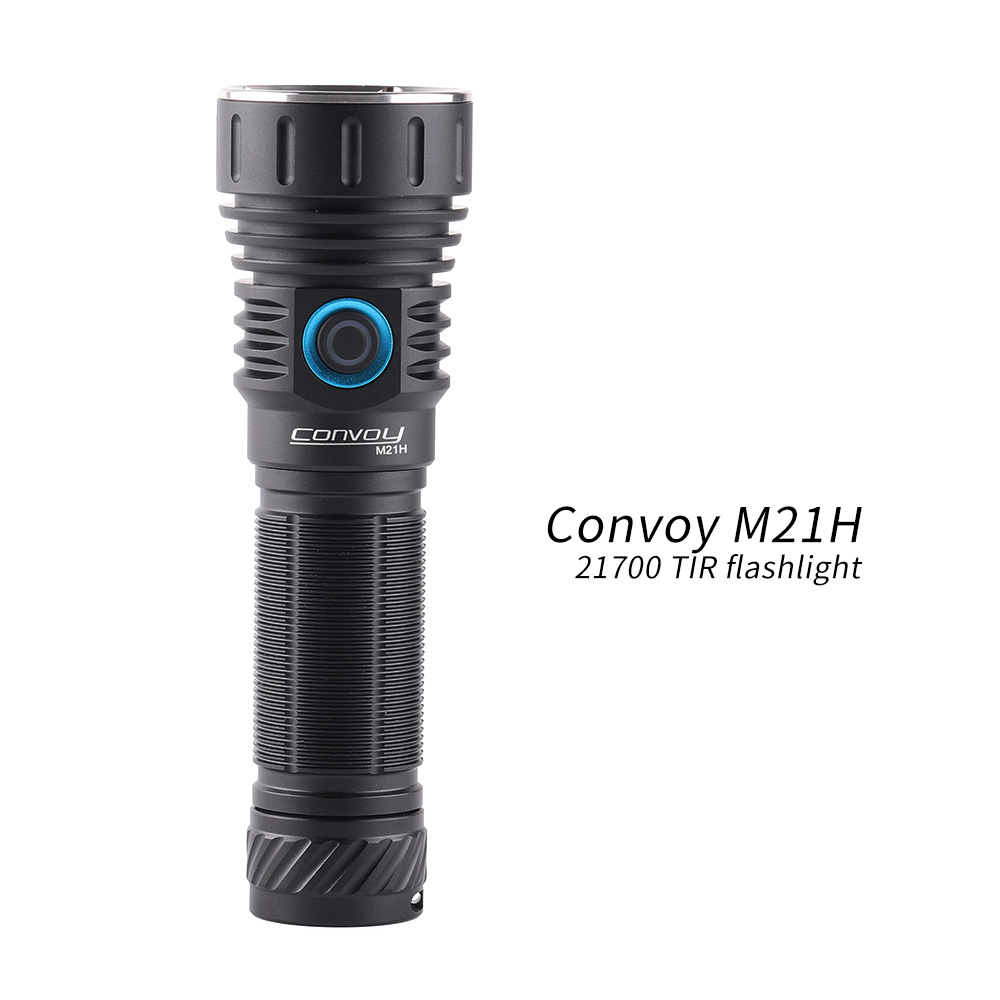

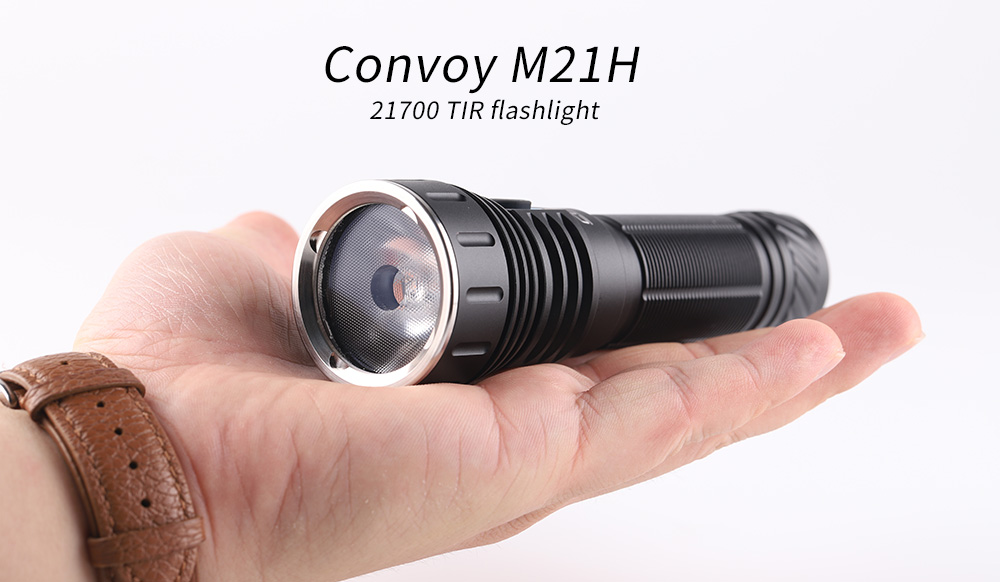

Convoy M21H 21700 flashlight

(4.7)
WISHLIST
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
Parameters:
Material: aluminum alloy
Low voltage warning: yes
Reverse polarity protection: yes

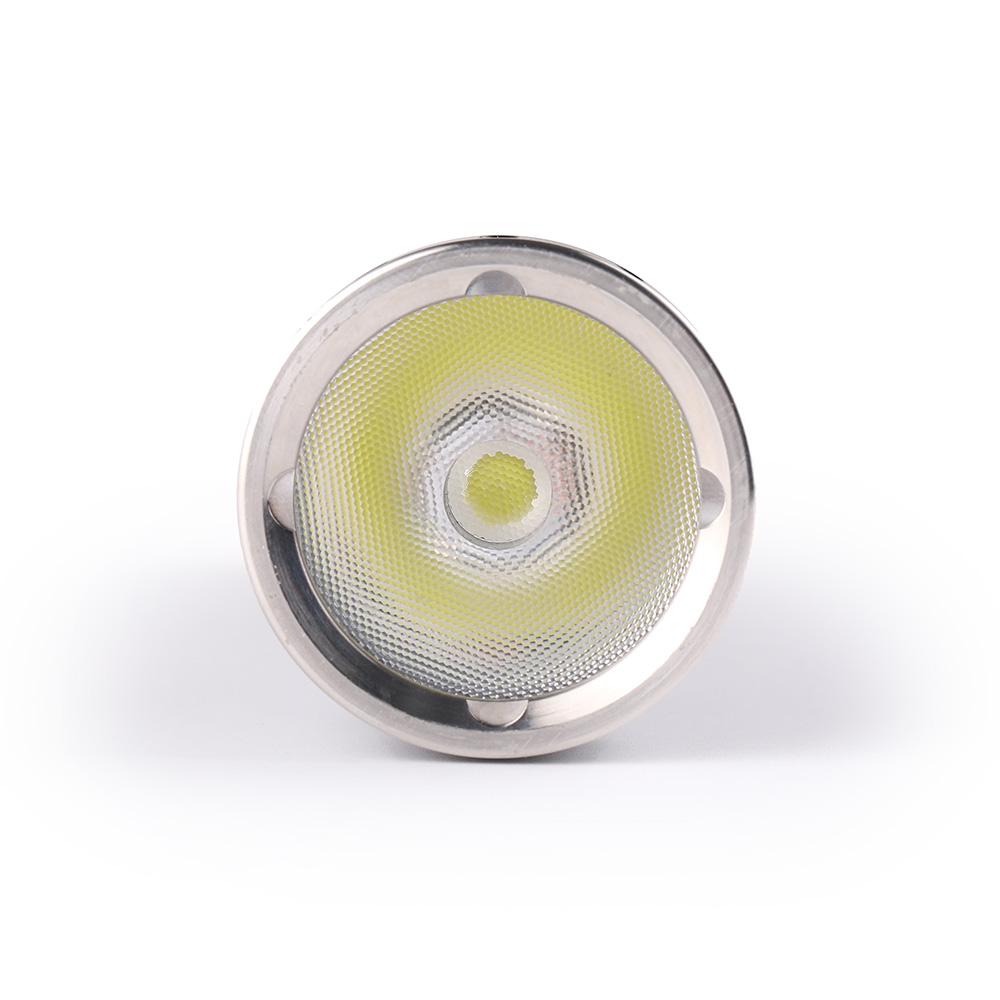

Lens Type: ar-coated glass lens ,3degree TIR  for SFT40, 12 degree TIR for other LED modes
Switch position: side
Mode memory: yes
Tail stand: yes
Driver output :
                     6V 5A for XHP70.2,XHP70.3 Hi
                     12V 2.5A for GT FC40
                     3V 8A for GT red/green/blue light
Flux:
                     XHP70.2,XHP70.3 Hi R70--- 4000LM
                     XHP70.3 Hi R9050---3000LM
                     GT FC40 --- 2500LM
Maximum charging current: 2A
Battery charger includes: not included
Battery type required: 1*21700 standard battery
Number of batteries required: 1
Size: Head/body/tail diameter: 40mm/27mm/28.5mm
length: 130.8mm
Product weight: 132g



Mode operation instructions:
1.click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down
2.flashlight off, press the button  ——>  moonlight mode  (0.2%)   [This brightness will not be remembered]
3.flashlight on or off, 2-click the button  ——>  turbo 100%
4.flashlight off,3-click the button   ——>  strobe
5.flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.
6.flashlight off,5-click the button   ——>  voltage detection  (* means "flash" ,  *** pause ******* means 3.7V, )
7.flashlight off,6-click the button   ——>  normal ramping mode switch to 4modes 1%-10%-40%-100%
8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.

The flashlight has low voltage protection and temperature control protection.
