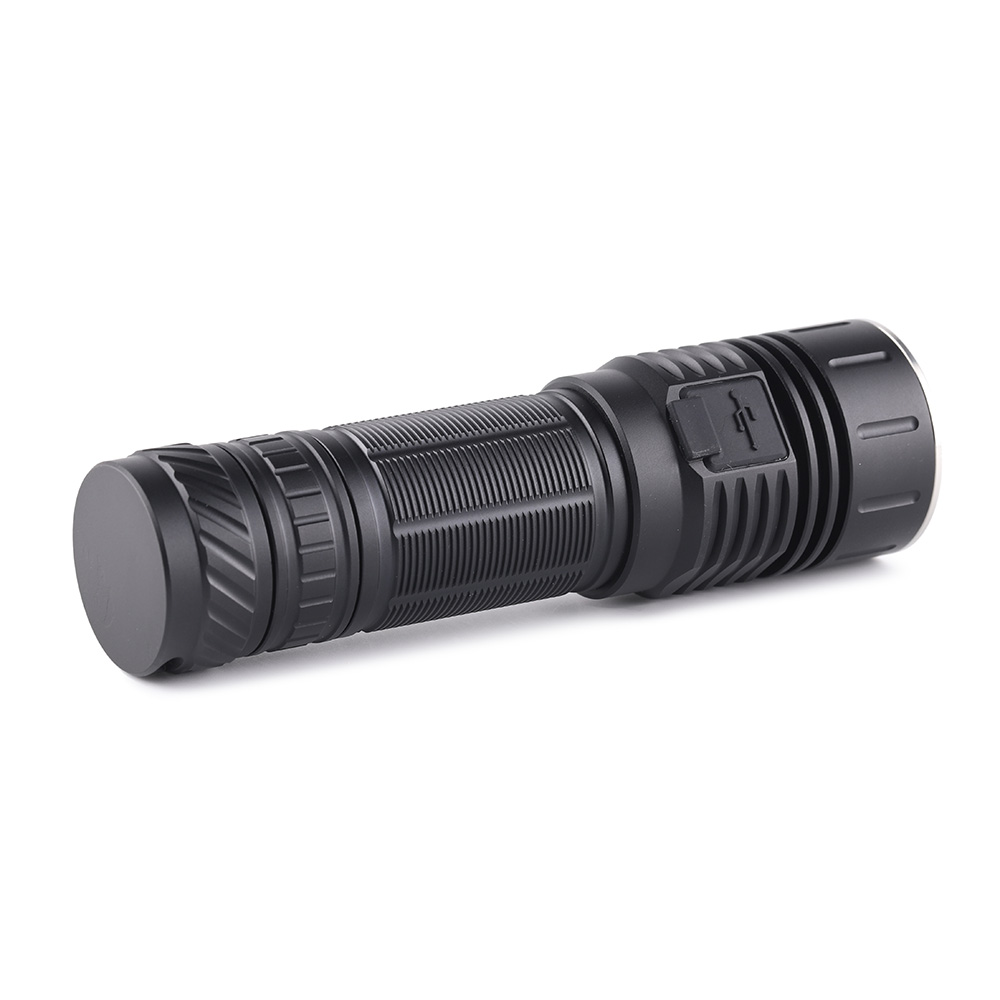

Convoy M26D 26650 26800 flashlight

(5.0)
WISHLIST
Please select 26800 or P54 26650 for the LHP73B that can withstand a current greater than 20 amperes.
Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Parameters:

    • Material: aluminum alloy

    • Low voltage warning: yes

    • Reverse polarity protection: yes

    • Lens Type: ar-coated glass lens and 12 degree TIR bead lens

    • Switch position: side

    • Mode memory: yes

    • Tail stand: yes
    • Lens Type: ar-coated glass lens ,
                        3degree TIR  for SFT40/SFT-25R,
                        8degree TIR for LHP531/SFT70/LHP73B,
                        12degree TIR for XHP70/GT FC40

    • Driver output :

                         6V 5A for XHP70.2,XHP70.3 Hi,SFT70
                         12V 2.5A for GT FC40
                         3V 8A for GT red/green/blue light, SFT40, SFT-25R, LHP531
                         3V 20A for LHP73B

    • Flux:

                         XHP70.2,XHP70.3 Hi R70--- 4000LM
                         XHP70.3 Hi R9050---3000LM
                         GT FC40 --- 2500LM

    • Maximum charging current: 2A

    • Battery charger includes: not included

    • Battery type required: 1*26800 or 1*26650 standard battery

    • Number of batteries required: 1

    • Size: Head/body diameter: 40mm/33mm

    • length: 140.8mm

    • Product weight: 182g



      Mode operation instructions(Excluding LHP73B):
      1.click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down
      2.flashlight off, press the button  ——>  moonlight mode  (0.2%)   [This brightness will not be remembered]
      3.flashlight on or off, 2-click the button  ——>  turbo 100%
      4.flashlight off,3-click the button   ——>  strobe
      5.flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.
      6.flashlight off,5-click the button   ——>  voltage detection  (* means "flash" ,  *** pause ******* means 3.7V, )
      7.flashlight off,6-click the button   ——>  normal ramping mode switch to 4modes 1%-10%-40%-100%
      8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.

      The flashlight has low voltage protection and temperature control protection.


      Mode operation instructions for LHP73B:
      • Press the button → The flashlight turns on at the last memorized brightness → Hold the button to gradually increase brightness → Release, then hold the button again to gradually decrease brightness
      • When the flashlight is off, press and hold the button → Moonlight mode (this brightness level can not be memorized)
      • Whether the flashlight is on or off, double-click the button → 10A brightness mode
      • Whether the flashlight is on or off, double-click and hold the button → 20A brightness mode (after releasing the button, it returns to the previous brightness level or turns off)
      • When the flashlight is off, triple-click the button → Strobe mode
      • When the flashlight is off, quadruple-click the button → Tactical mode, 20A; quadruple-click again to exit Tactical mode
      • When the flashlight is off, quintuple-click the button → Voltage check (“” indicates flashes, “** pause *******” indicates a voltage of 3.7V)
      • When the flashlight is off, six-click the button → Switch to stepped brightness mode: four brightness levels, maximum current 10A
      • When the flashlight is off, ten-click the button → Lockout mode; under any operation the flashlight will blink once to indicate it is locked. Ten-click again to exit Lockout mode. Note: This is the only way to unlock.
      • The flashlight features low-voltage protection and temperature control protection.
    • Customer Reviews
      Dmit*********nkov

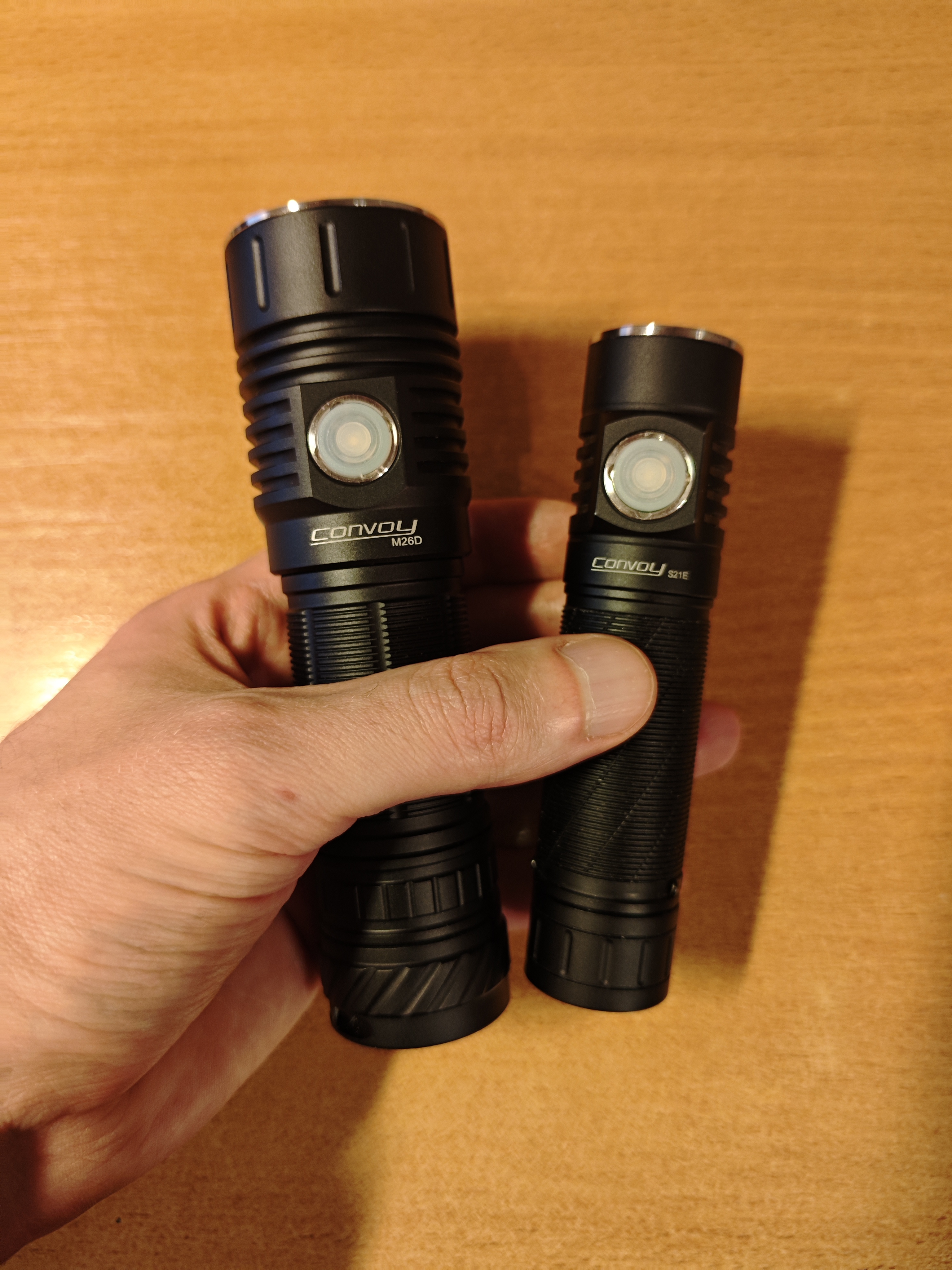

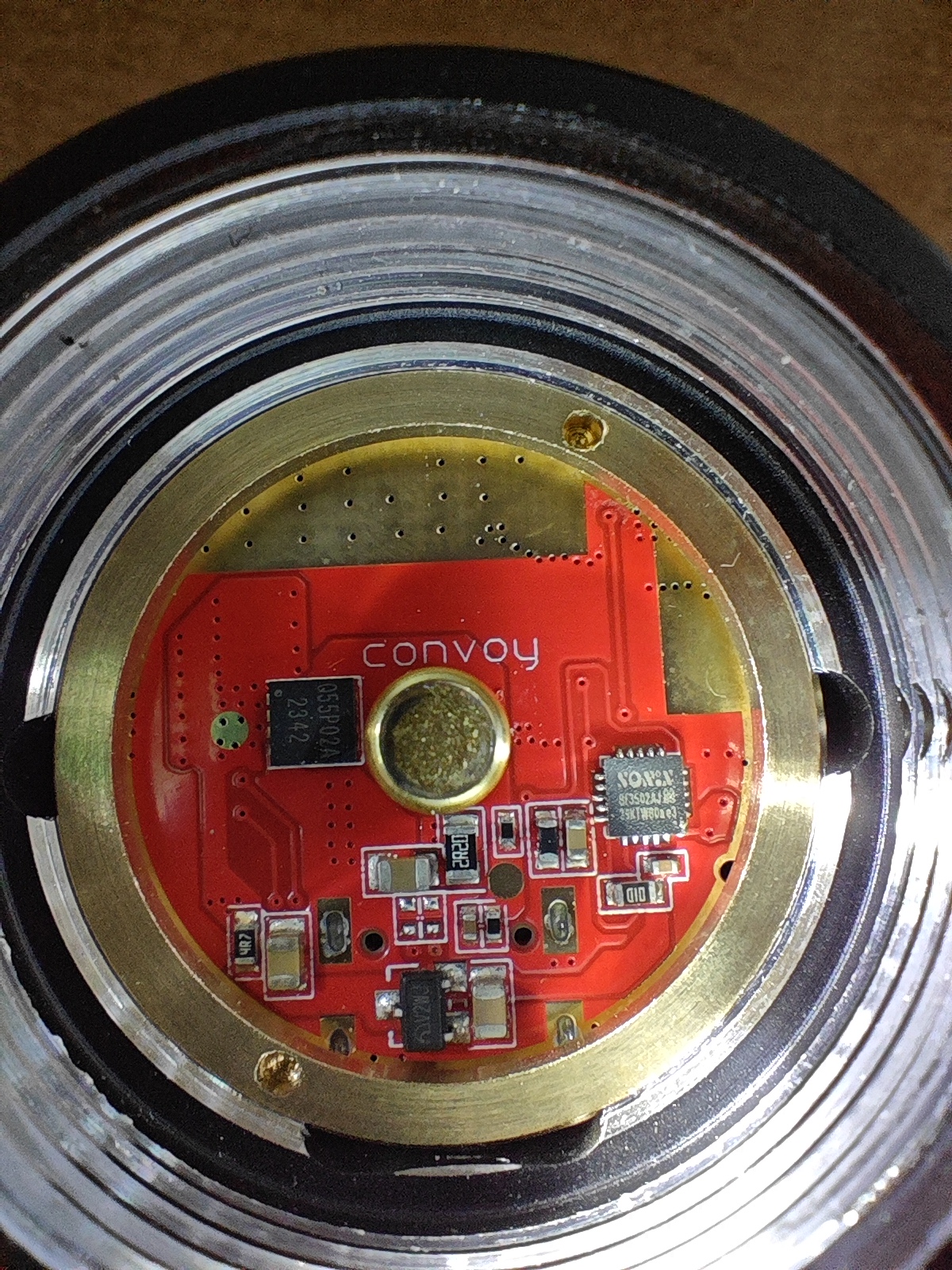

      I like this flashlight. It's bright and chunky, but still slim enough to hold in my hand comfortably. The beam with stock 12-degree TIR has a bigger and softer hot-spot compared to S21E reflector, but narrower spill. Some people complain about the tail spring being too weak, but my M26D would only blink if I spank it, it's fine while walking or shaking. The 28600 battery I got was tested to be 6.6 A*h, a bit lower than I expected, but still matches the description. Unlike S21E, this flashlight won't charge with Type-C<->Type-C cable, only Type-A<->Type-C works. I see a couple of unpopulated resistors on the driver: my speculation is that you can add a pair 5.1K resistors there to gain Type-C -> Type-C cable support, but lose the power-bank function. I haven't tried this yet, though.
