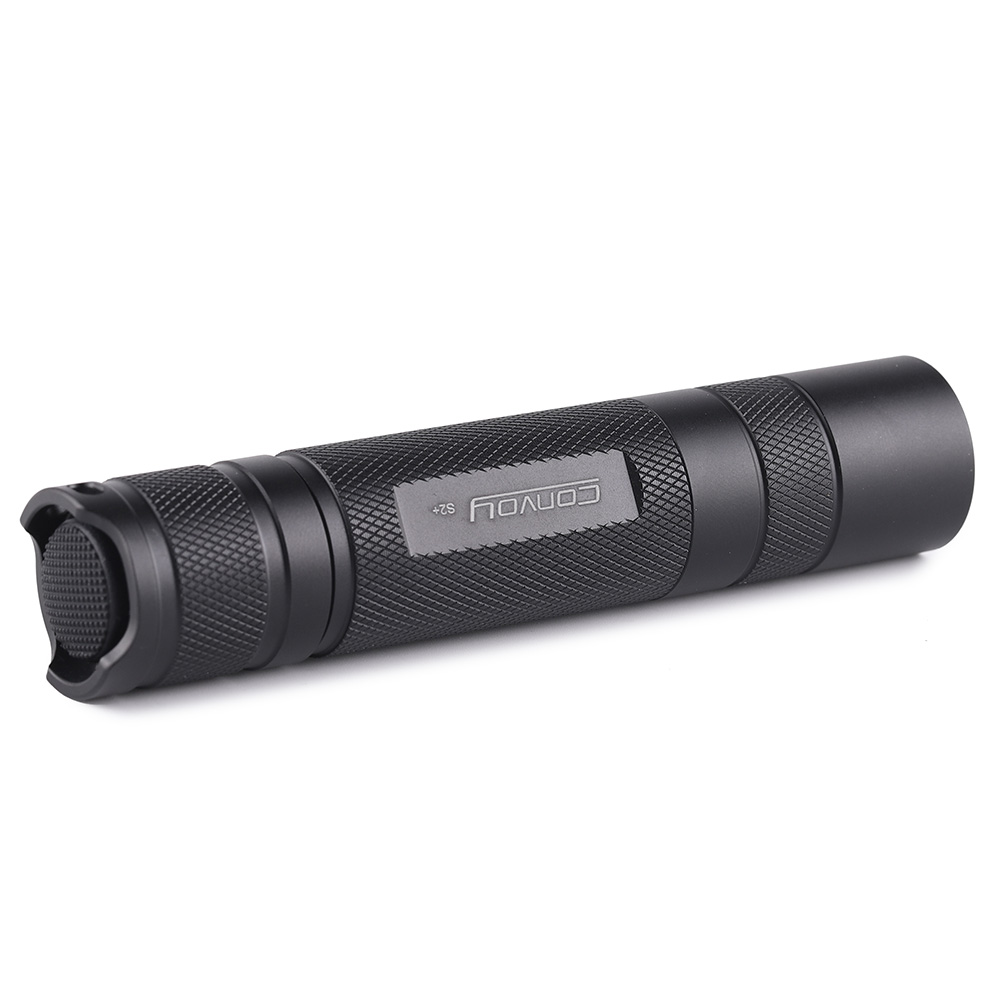

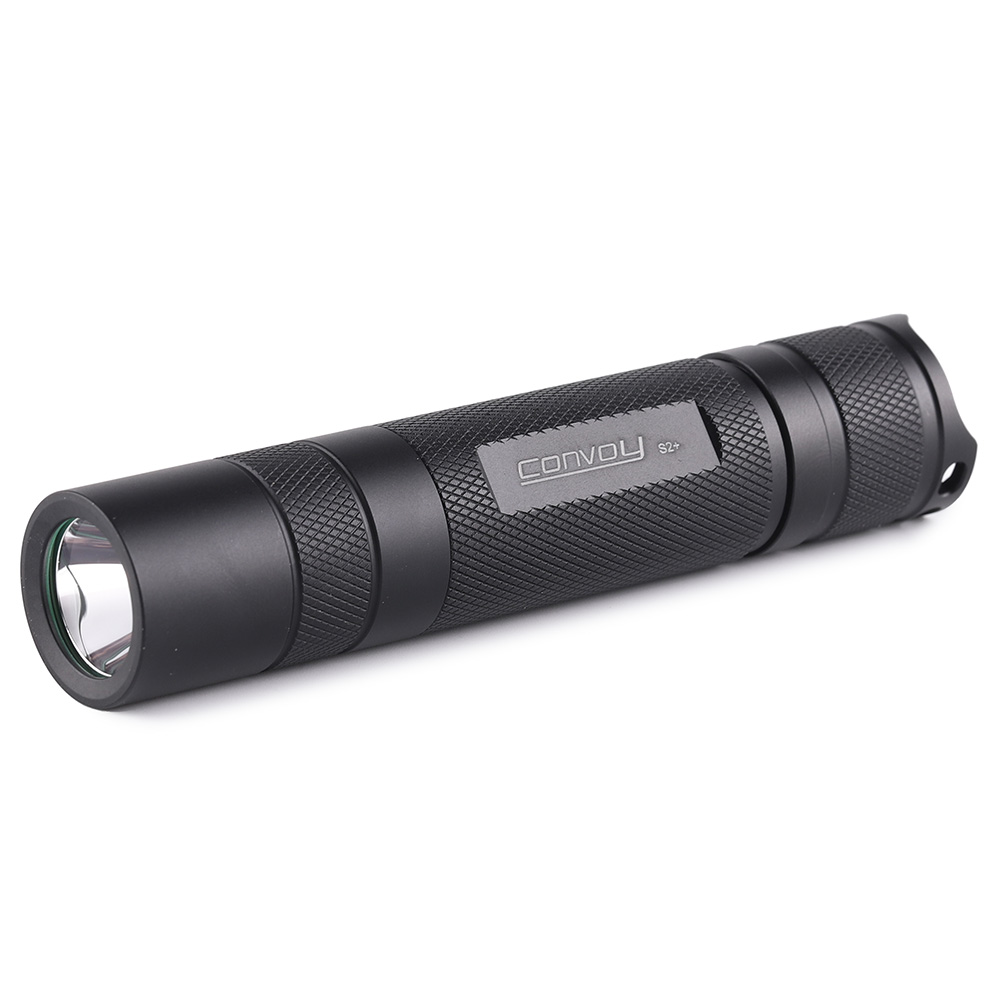

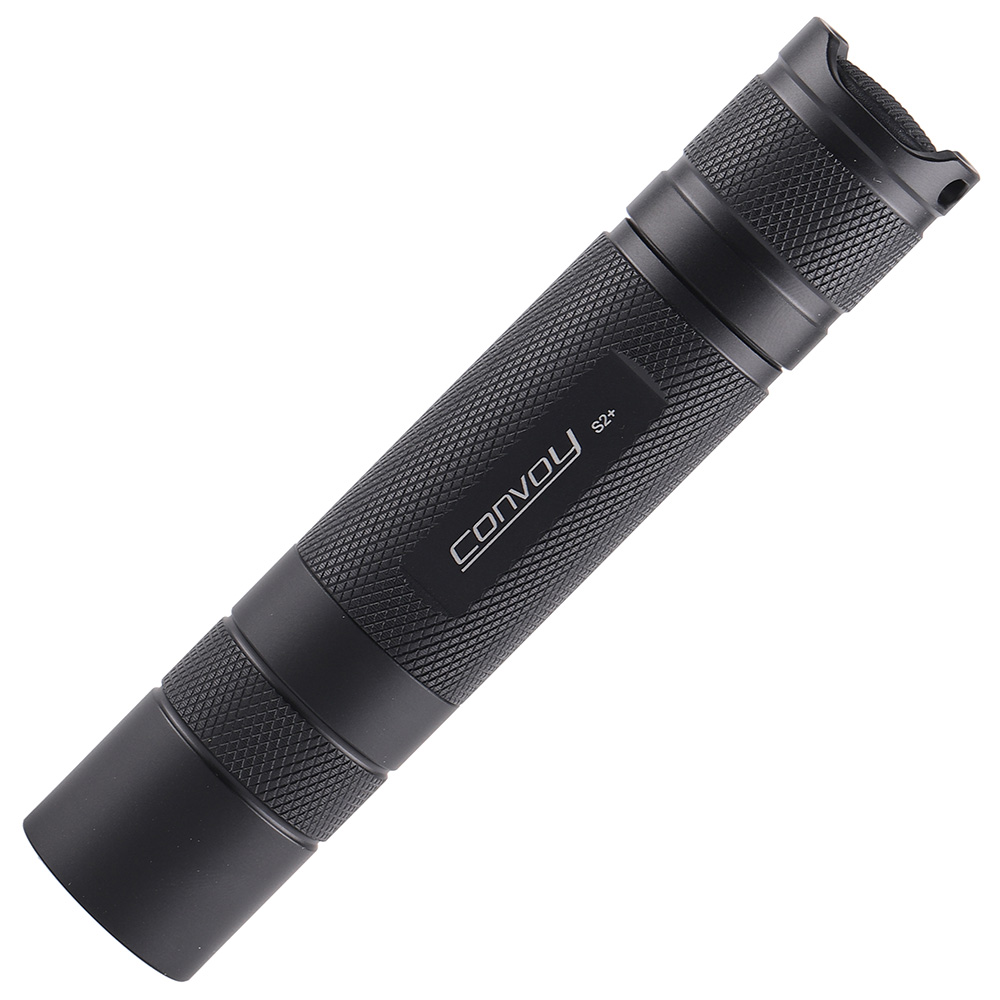

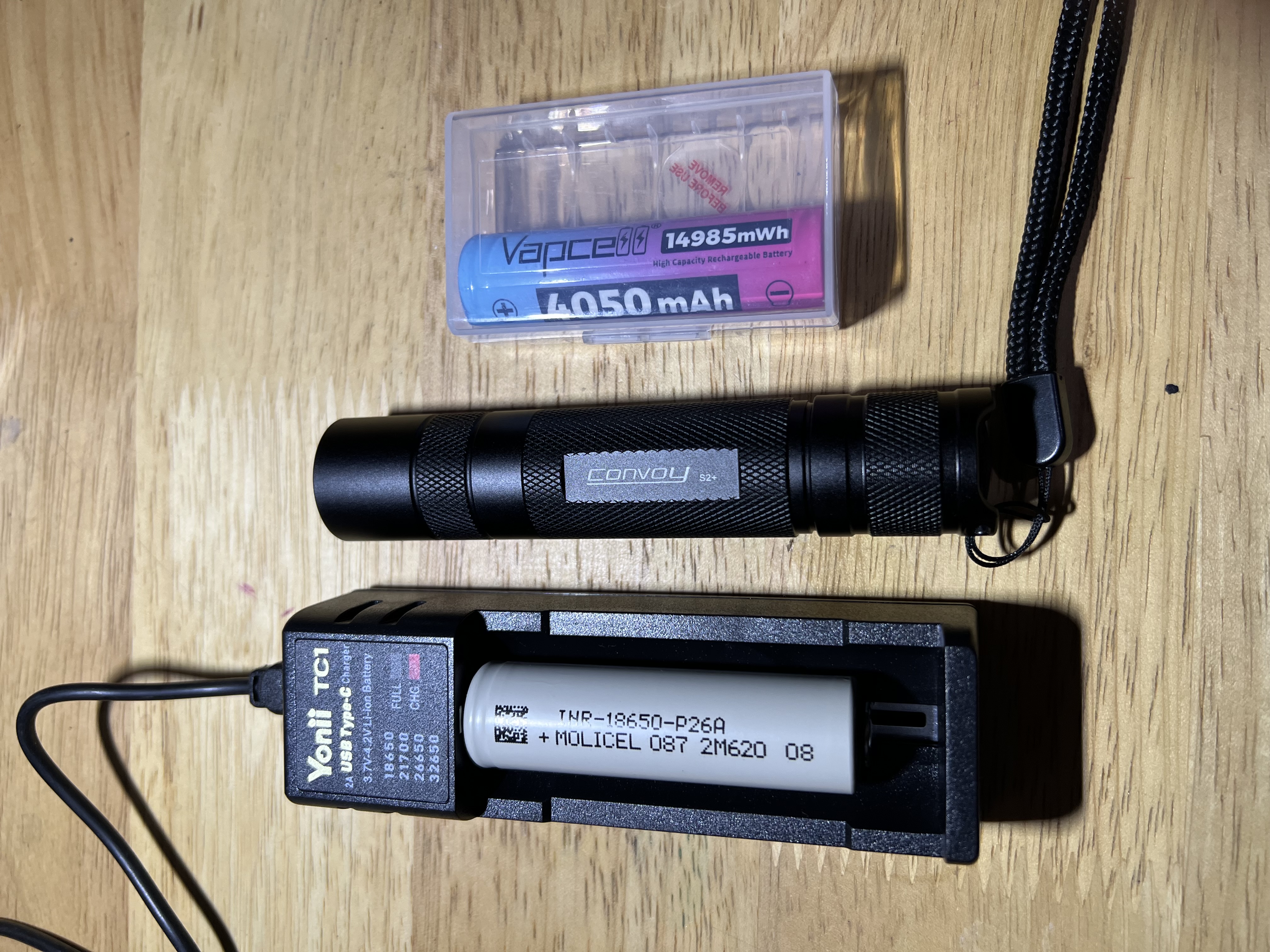

Convoy S2+ black 18650 flashlight

PARAMETER

Material:  Aluminum Alloy

Low voltage warning:  Yes

Reverse polarity protection:  Yes

Lens type:  Ar-coated Glass

Reflector: smooth for SST20 / SST40 / SFT40 / XPL HI / osram,
                orange peel for 219 / 519A / LH351D /B35AM/719A

Mode memory:Yes

Tailstand:  Yes

Battery included:  No

Required battery type: unprotected 18650 lithium battery

Required battery quantity:1pcs

Height:  118mm

Width:  24.1mm

Weight:76g

Mode Instruction:

4 modes:
0.1%-3%-30%-100%

12 groups:

1.click the switch to turn the flashlight on/off,tap the switch to select mode

2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

       -------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)

       -------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)

       -------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)

       -------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)

       -------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)

       -------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)

       -------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

       -------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)

       -------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)

       -------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)

       -------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)

       -------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)

Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.

battery-checkinstructions:

<2.95V 1 flash,

2.95-3.25V 2 flashes,

3.25-3.55V 3 flashes,

3.55-3.85V 4 flashes,

>3.85V 5 flashes
