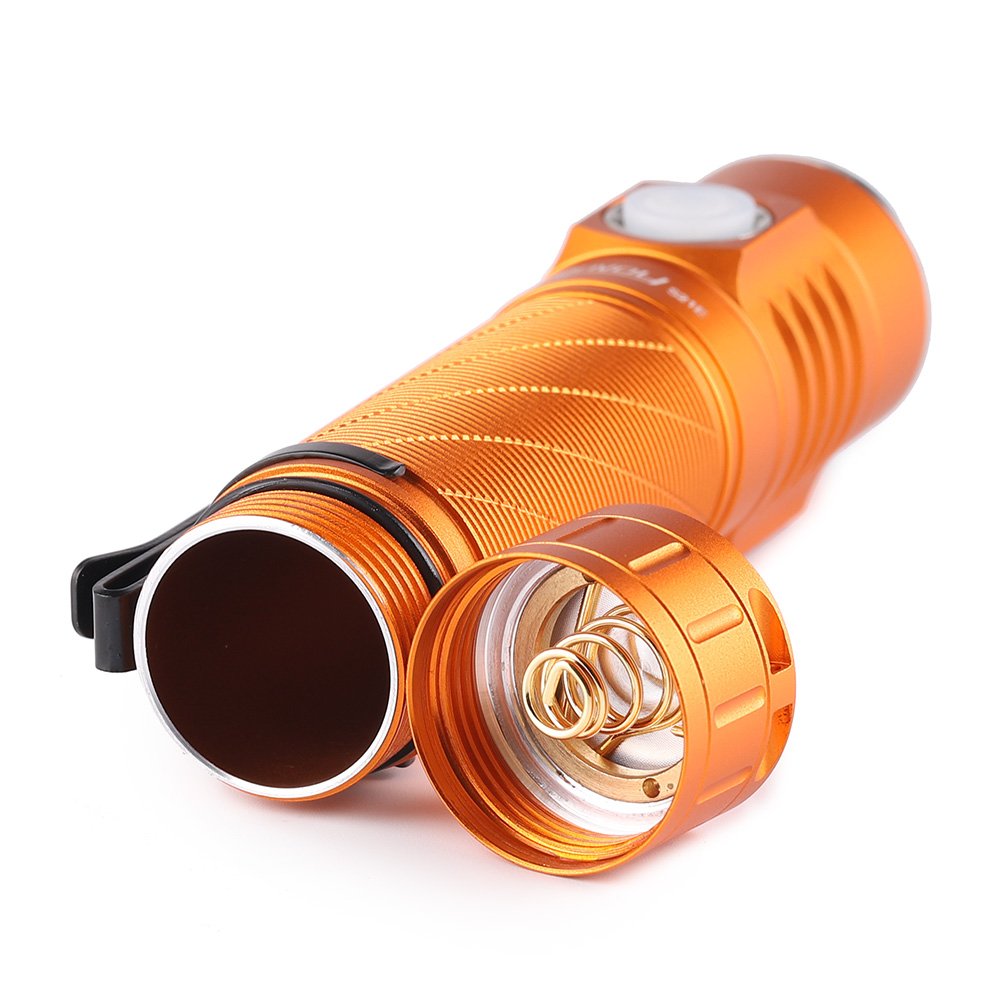

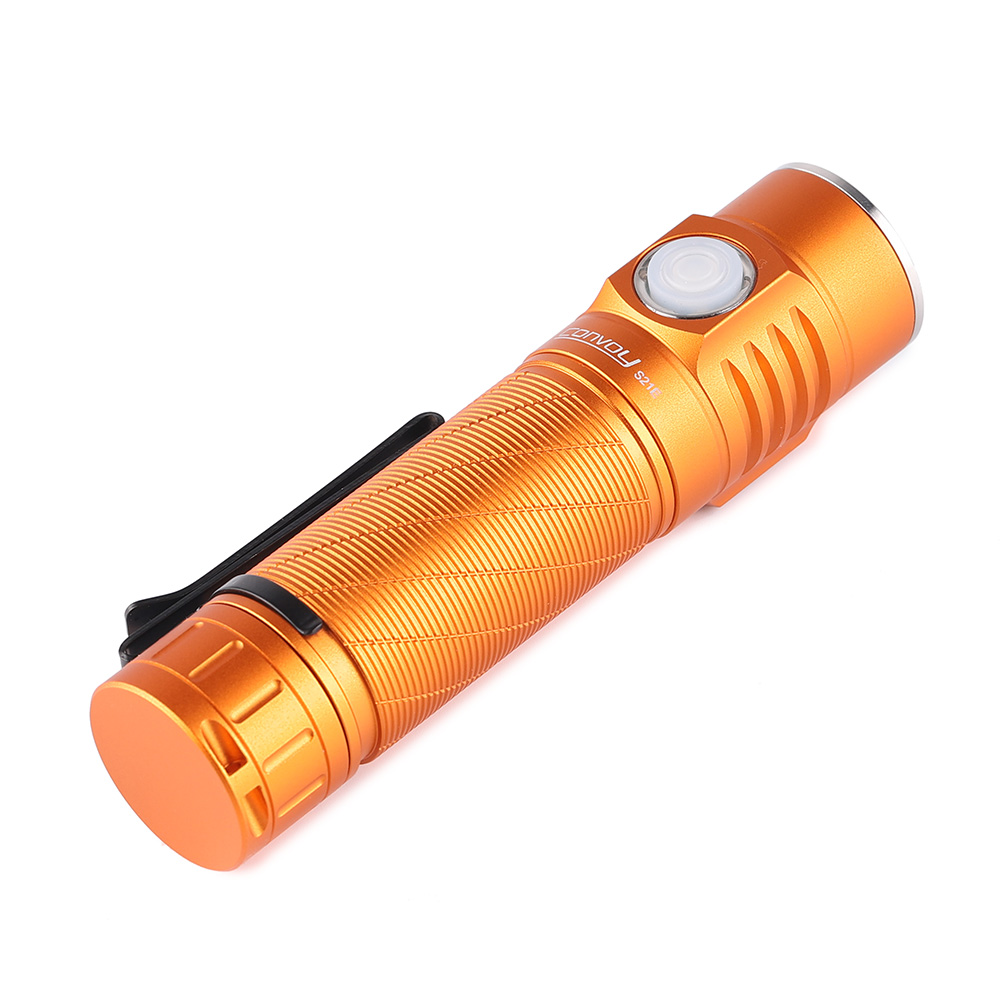

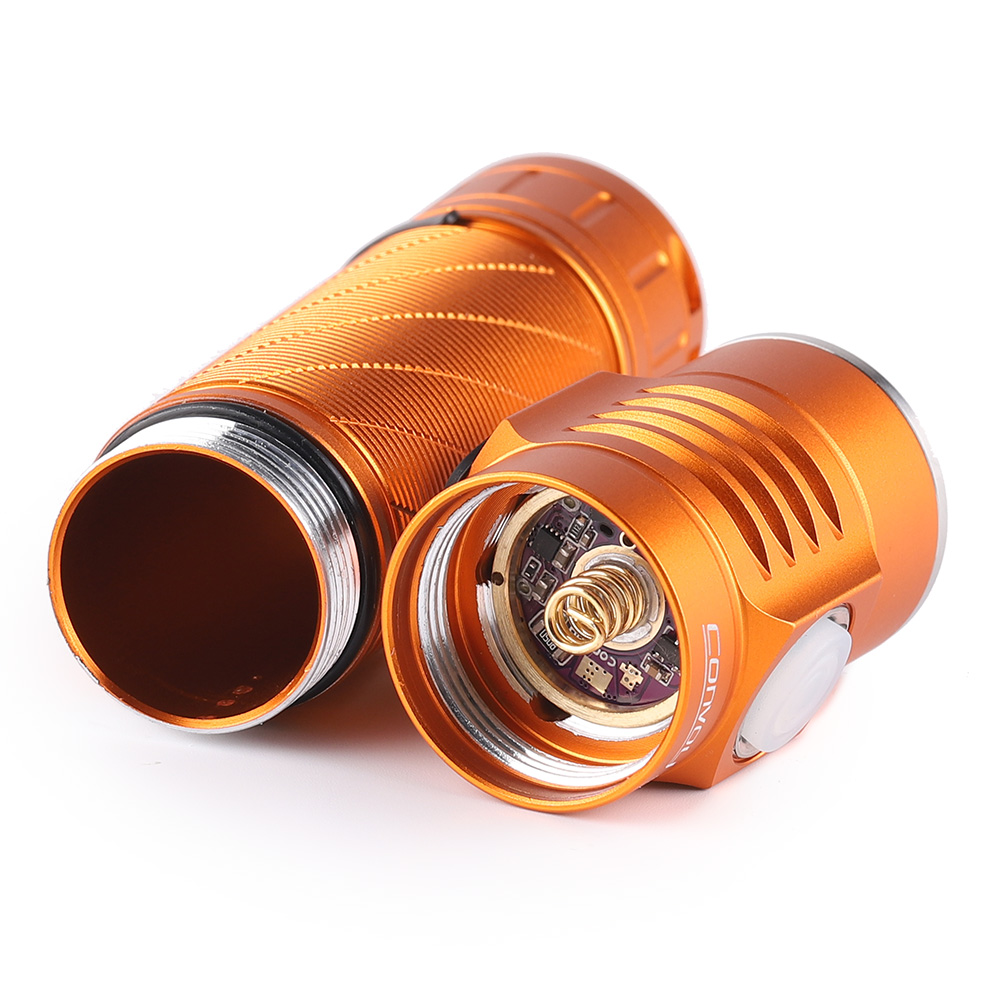

Convoy S21E orange 21700 flashlight
-
Detail
Basic introduction Construction Material: Aluminum alloy，The surface is hard anodic oxidized Lens type: gree-coated glass lens Reflector: made of aluminium alloy, the reflective surface is vacuum-coated. orange peel for 519A , XHP50.3 HI , B35AM , 719A smooth for SST40 , SFT40 LED MCPCB: made of copper.
DTP thermally conductive structure.
3.0 W/(m·K) thermal grease below the MCPCB.Head structure: integrated type (Best structure for conducting heat, but please note that fast heat transfer does not mean fast heat dissipation, which depends on the surface area of the flashlight.) Switch: The electronic switch is located on the side of the head, pay attention to the flashlight using the electronic switch has standby current, if it is possible that you will not use the flashlight for more than a week, please loosen the tail of the flashlight to avoid the risk of battery damage. Tail: There is a hole at the bottom for installing the lanyard .It does not affect the handstand of the flashlight. Nickel-plated phosphor copper spring inside. Electro&optical parameters Driver output:
(default constant current driver)3V 6A for SST40 , SFT40 , 519A , 3V XHP50.3 HI 6V 2.2A for B35AM , 719A 6V 3A for XHP50.3 HI Driver output:
(Anduril 1.0 FET)3V 8A for SST40 , SFT40, 3V XHP50.3 HI 3V 6A for 519A Driver efficiency: 80%-95% Mode: See below for details Flux: 1500-2000LM Illumination distance: < 100 meters (estimated by the naked eye, data for reference) ? (ANSI standard) Runtime: ? Related features Low voltage warning: Yes, After a period of alarm, the flashlight will automatically turn off. Reverse polarity protection: Yes Mode memory: Yes Temperature control function： Yes , As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up. Tailstand: Yes About the battery Battery included: No Required battery type: unprotected 21700 lithium battery Required battery quantity 1 piece Size & weight Length: 116.4mm Diameter: 27.3mm Weight: net weight 88g (without packaging, batteries, headlight strap
gross weight 98g (include clip, lanyard, package)Accessory: 1* lanyard , 1* clip Mode operation instructions(default constant current driver):
1.click the button ——> flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down
2.flashlight off, press the button ——> moonlight mode 0.01A (0.2%) [This brightness will not be remembered]
3.flashlight on or off, 2-click the button ——> turbo 100%
4.flashlight off,3-click the button ——> strobe
5.flashlight off,4-click the button ——> tactical mode, only 100% ,4-click the button again to quit tactical mode.
6.flashlight off,5-click the button ——> voltage detection (* means "flash" , *** pause ******* means 3.7V, )
7.flashlight off,6-click the button ——> normal ramping mode switch to 4modes 1%-10%-40%-100%
8.flashlight off,10-click the button ——> Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.
The flashlight has low voltage protection and temperature control protection.
Mode operation instructions(Anduril 1.0):
-
Customer Reviews
Edu*******ček

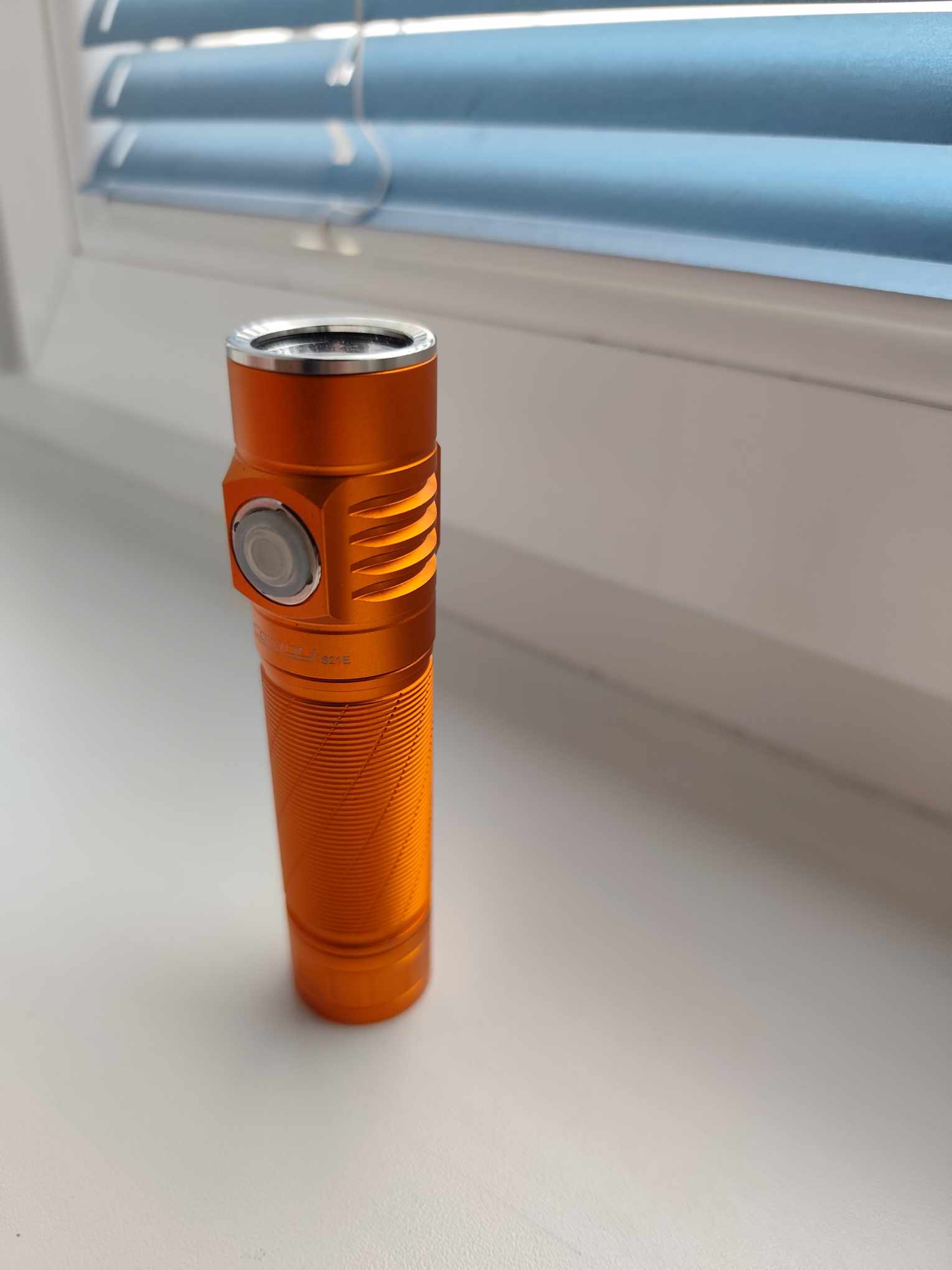

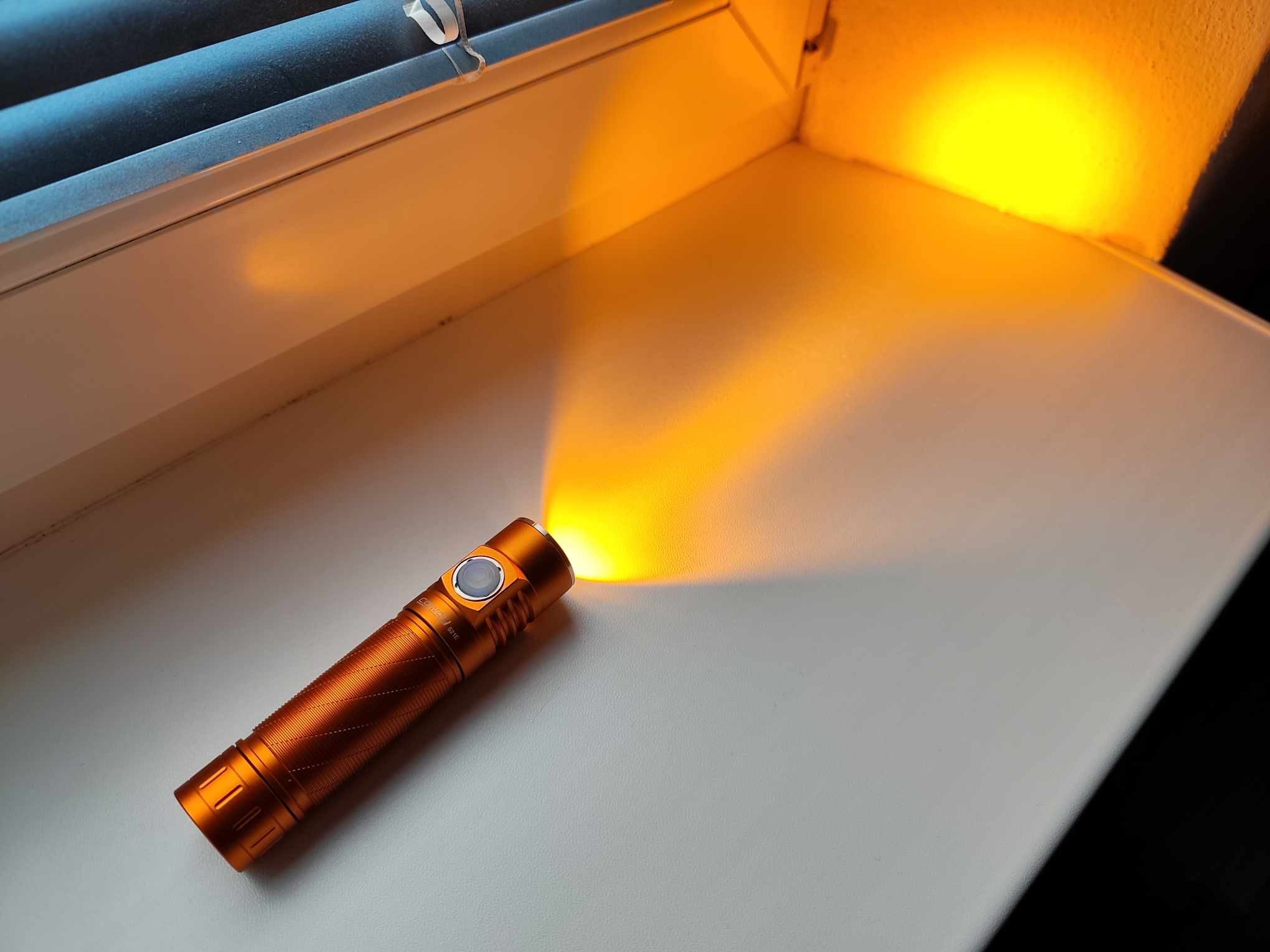

One more photo, photo from the forrest.
Edu*******ček
I had the orange version of the s21e flashlight fitted with the lhp531 chip with a light temperature of 1800K and an anduril driver. I love warm orange light, and the orange color of flashlights. Orange is absolutely beautiful in the forest. It will never be as real in a photo taken with a phone as it is to see and feel in person. I really like the Chinese lhp531 chip and its other versions for their versatility and performance. A small flashlight that fits in your hand, even in the smallest trouser pocket, and yet so powerful. Not only does it illuminate a wide area (and I didn't fit a tir lens into the flashlight, I left a reflector there), but it can also shine quite far. In the attached photo, you can see objects up to 200+m away! A very versatile light. It only lasts a short time on turbo due to the temperature, but you will only use the turbo occasionally for long-distance lighting anyway. This is not the only s21e I have. I already have the version with b35am and 519a. They are all beautiful. I really like the s21e. The Anduril version with a temperature of 1800K can also be used in candle mode for atmosphere in the bath, or elsewhere. The only complaint I have about the Anduril version is the button, which lights up continuously when turned on and cannot be turned off. And the lamp itself lacks a very strong built-in magnet to be perfect.
Fabi********chel
An excellent flashlight. Many color options. It fits perfectly in the hand and the beam pattern is superb. I also like the user interface of the constant current driver. The only (minor) drawback is that the lockout function (the most important feature with a side switch) is very cumbersome to activate, requiring ten clicks. Would be great it it was only 3 or 4 clicks. Especialy because loosen the tailcap doesn't always work properly. But other than that it is a great light.
P***r
The S21e flashlight is of excellent quality. Convoy is a very well-priced brand, and the founder is very friendly. Fast delivery to Poland via InPost is a big plus. The flashlight's customization options are incredible, and you can buy a lot of spare parts. I previously used cheap flashlights because our market is flooded with such inferior products, and stores offer very low-quality flashlights everywhere. Since I discovered the option of ordering directly from the manufacturer, I will only buy flashlights from Convoy. It's great that you can also buy high-quality batteries for the flashlight included in the set.
Ant*******ecki

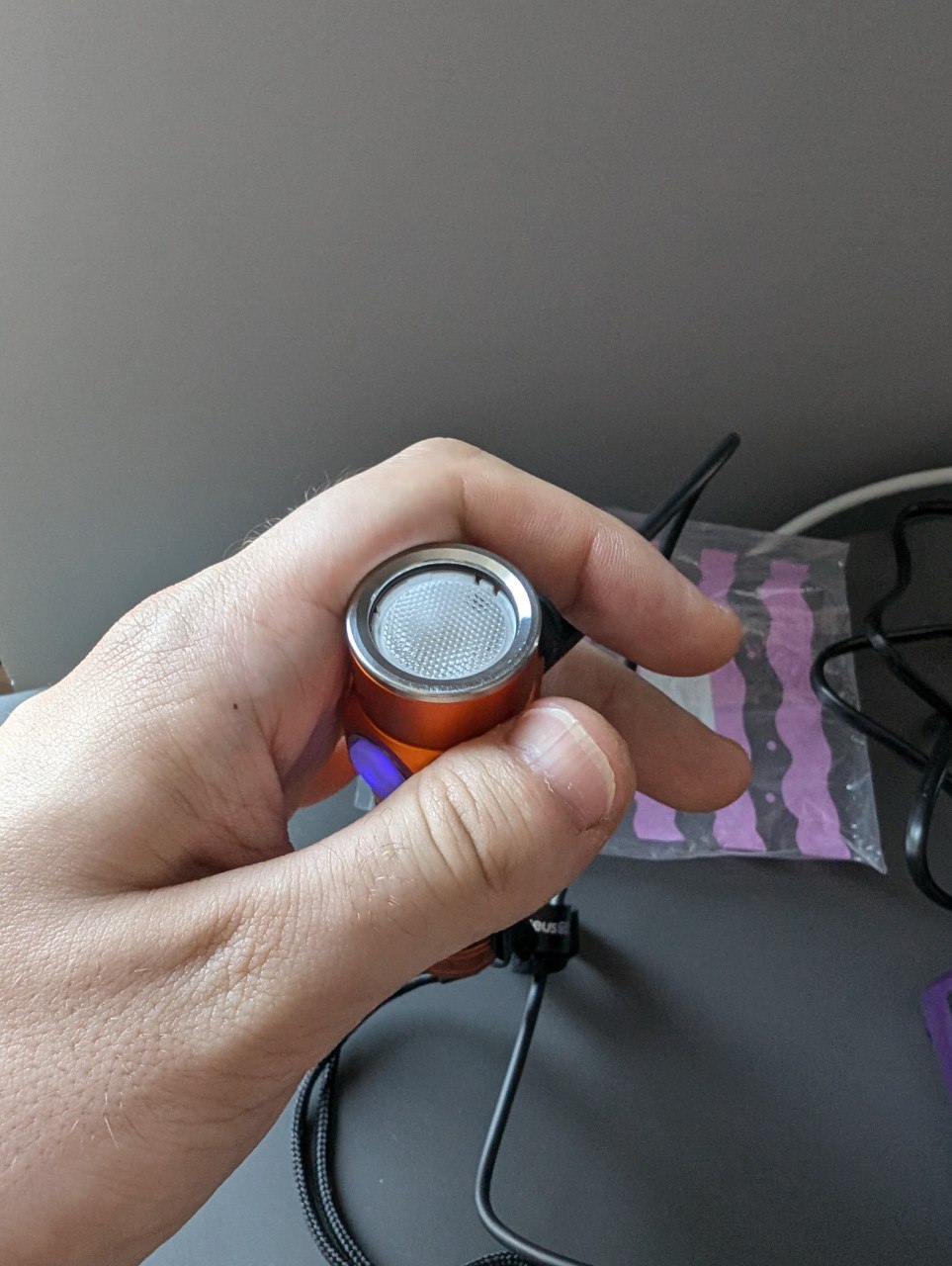

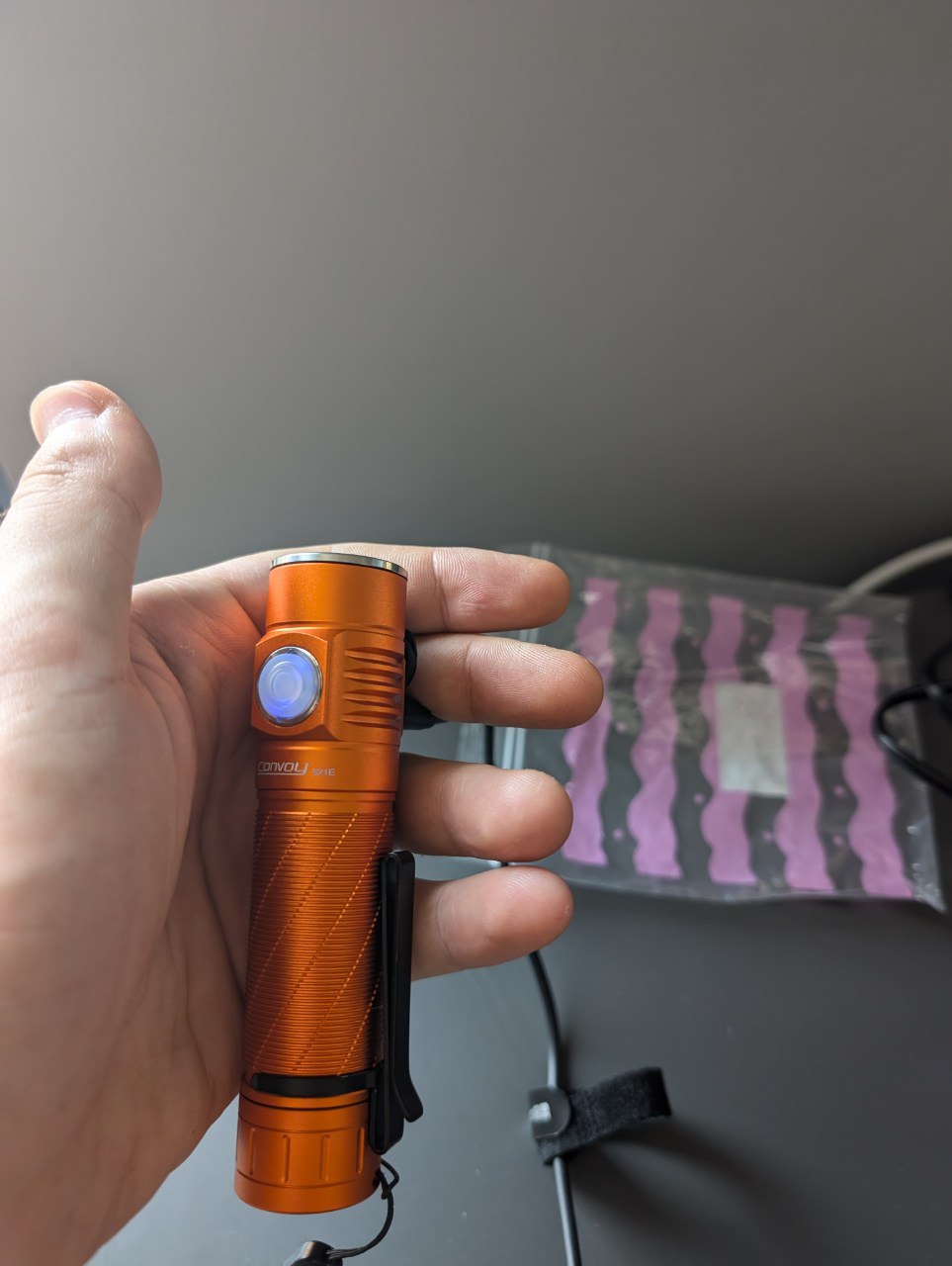

The flashlight is very nice. The color looks very good. I got it with 519A led, Anduril driver and TIR lens. It shines very well. The build quality is also very good.
