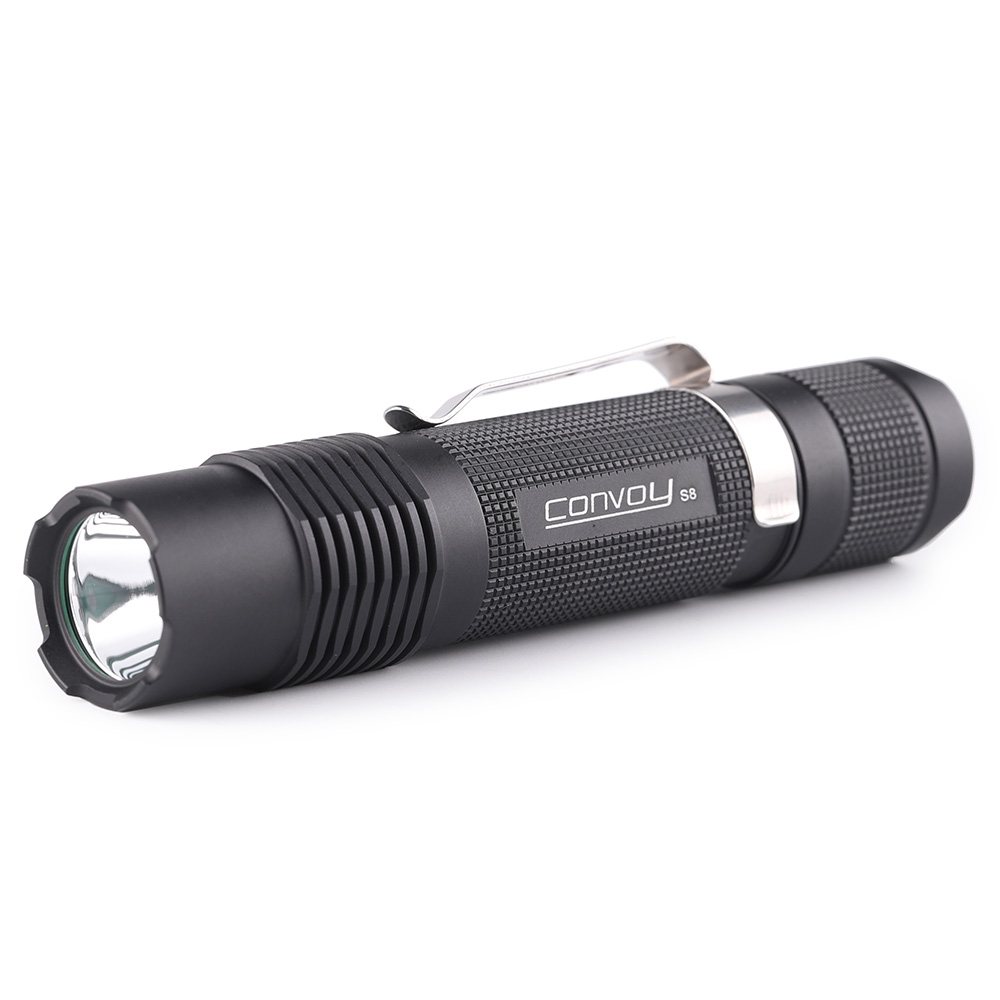

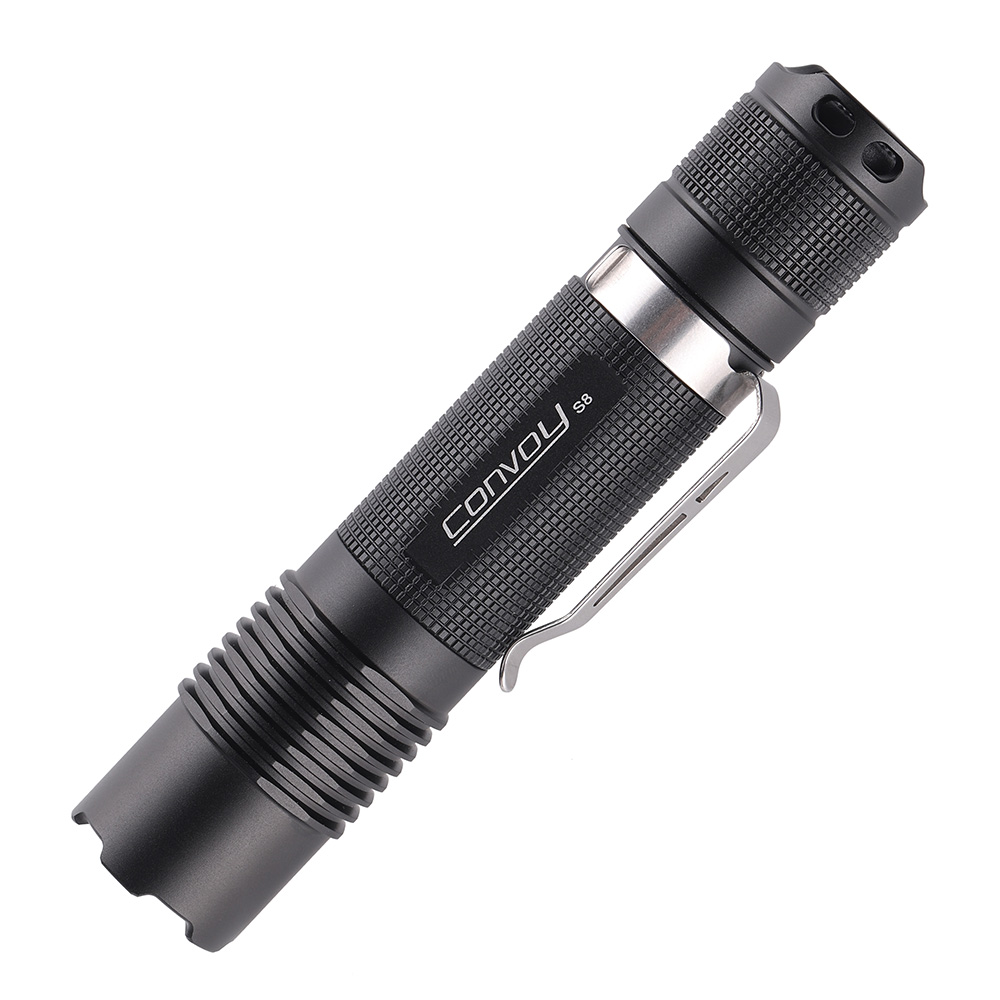

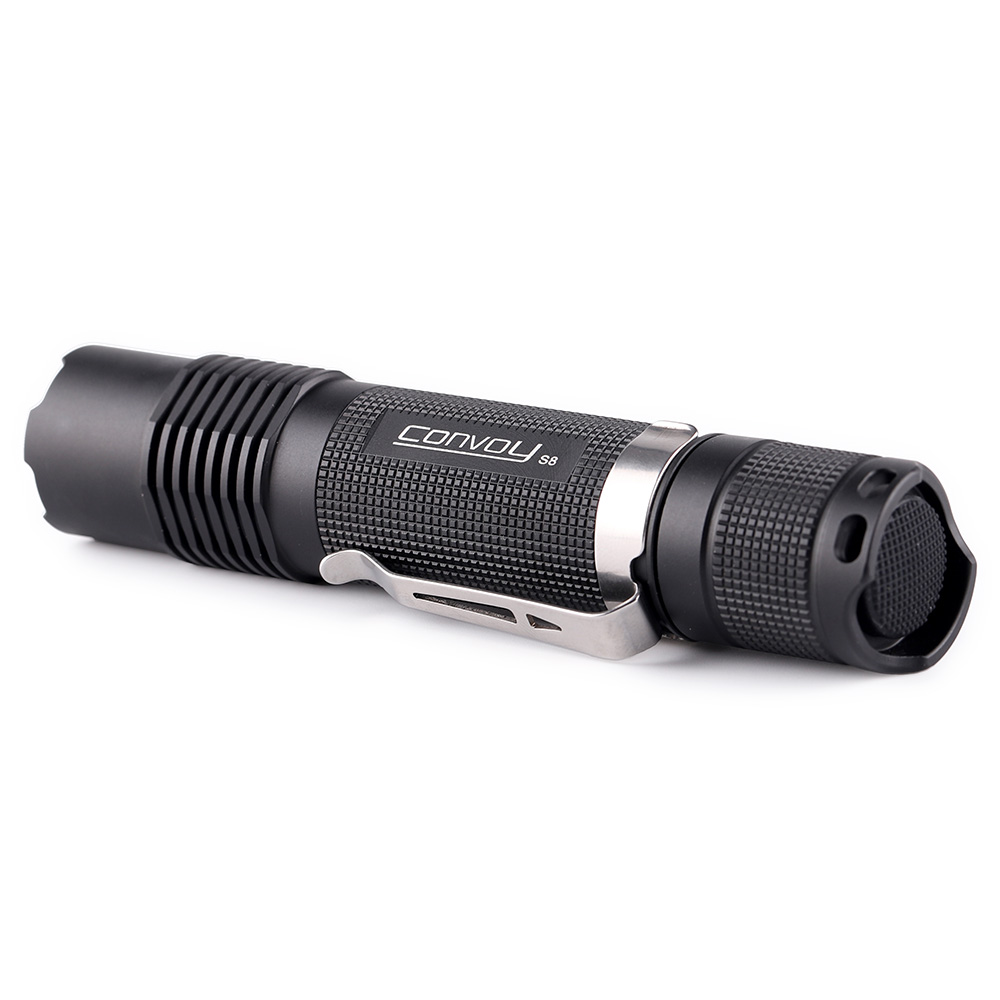

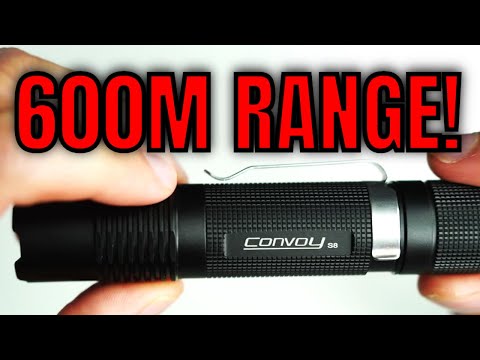

Convoy S8 18650 flashlight
Convoy S8 18650 flashlight
WISHLIST
Quantity
-
Detail
PARAMETER
Material: Aluminum Alloy

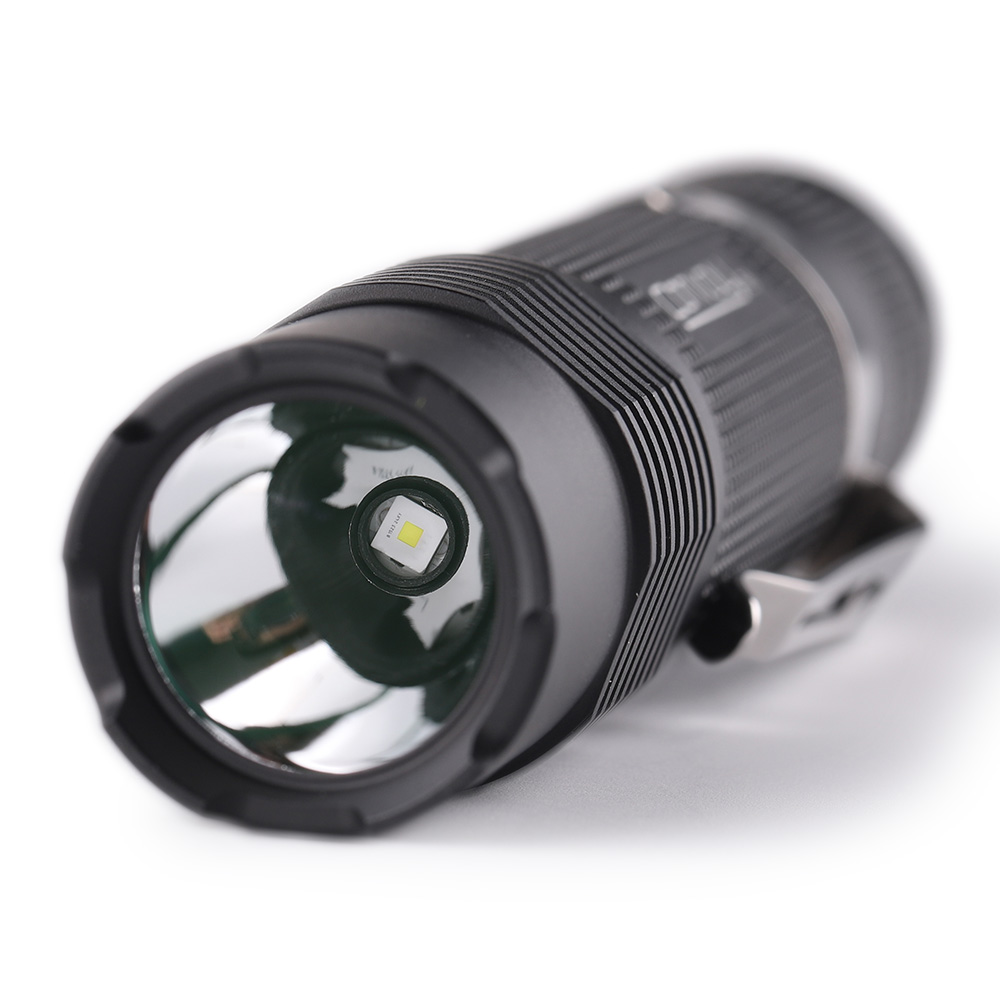

Lens type: ar-coated glass lens
Reflector: orange peel for 519A , 219 , LH351D ,
smooth for SST40 , SFT40 , SST20 , XPL HI ,
KW CSLNM1.TG , KR CSLNM1.23 , KP CSLNM1.F1 , KB CSLNM1.14 ,
KT CSLNM1.13 , KY CSLNM1.FY , SST-20-DR
Driver output : all are constant current
2.5V 2.5A for KR CSLNM1.23 , SST-20-DR
3V 3A for 219 , SST20 , XPL HI
3V 5A for 519A , LH351D , SST40 , SFT40 ,LM2AW.DC , KW CSLNM1.TG , KP CSLNM1.F1 , KB CSLNM1.14 , KT CSLNM1.13 , KY CSLNM1.FY
Low voltage warning: Yes
Reverse polarity protection: Yes
Temperature protection function： Yes
Mode memory: Yes
Tailstand: Yes
Battery included: No
Required battery type: standard INR or IMR 18650 lithium battery (65mm length)
Required battery quantity: 1pcs
Height: 123.5mm
Width: 24.2mm
Weight: 77g
4 modes: 0.1%-3%-30%-100%
12 groups:
1.click the switch to turn the flashlight on/off,tap the switch to select mode
2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)
Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.
-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)
-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)
-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)
-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)
-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)
-------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)
-------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)
-------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)
-------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)
-------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)
-------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)
-------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)
Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.
battery-check instructions:
<2.95V 1 flash,
2.95-3.25V 2 flashes,
3.25-3.55V 3 flashes,
3.55-3.85V 4 flashes,
>3.85V 5 flashes
5 groups [ without mode memory ]
1.click the switch to turn the flashlight on/off,tap the switch to select mode
2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.
-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (100%)
-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (100%-20%)
-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%-strobe)
-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (20%-100%)
-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (strobe-100%)
-
Customer Reviews

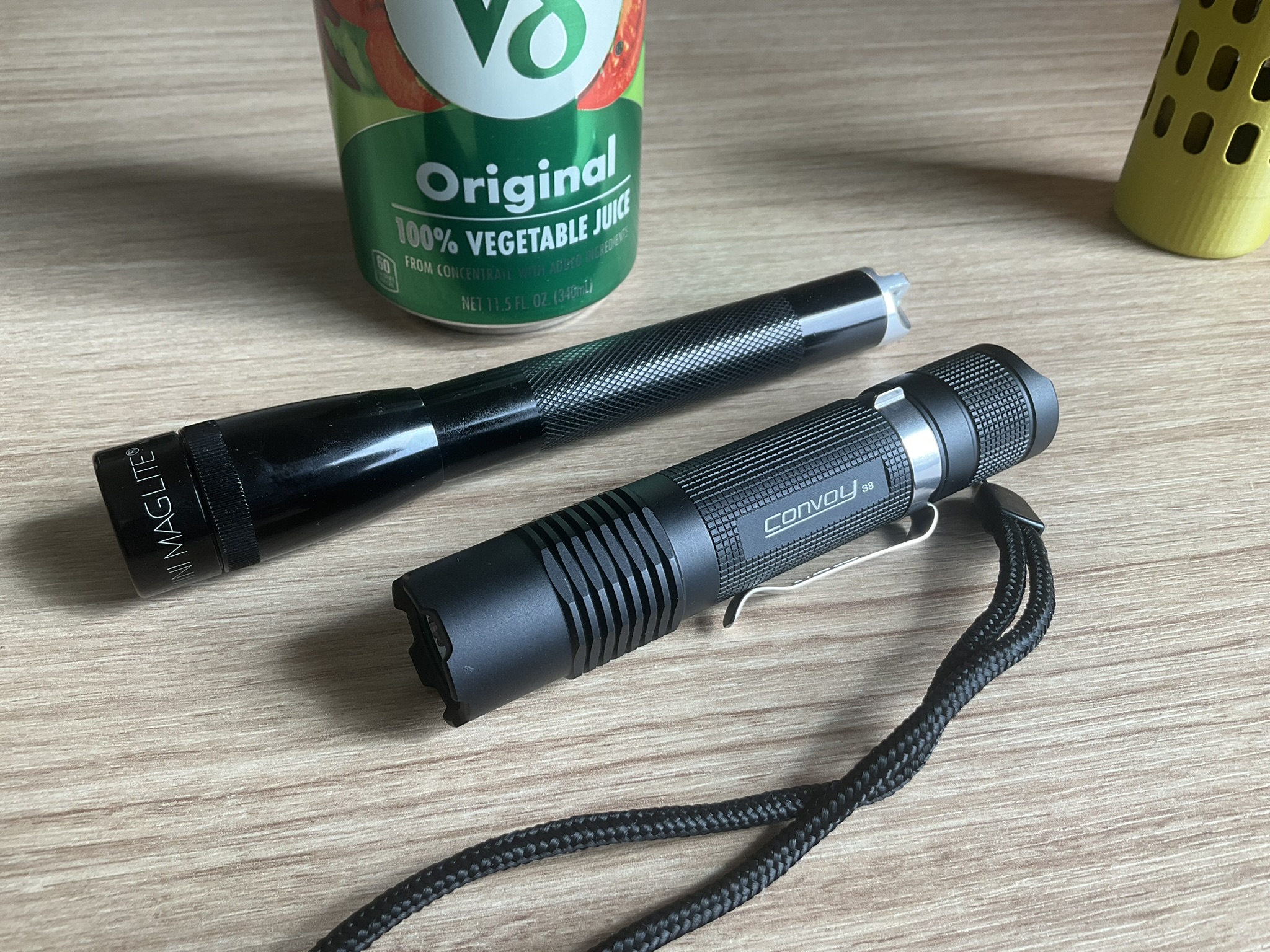

Chr******vis

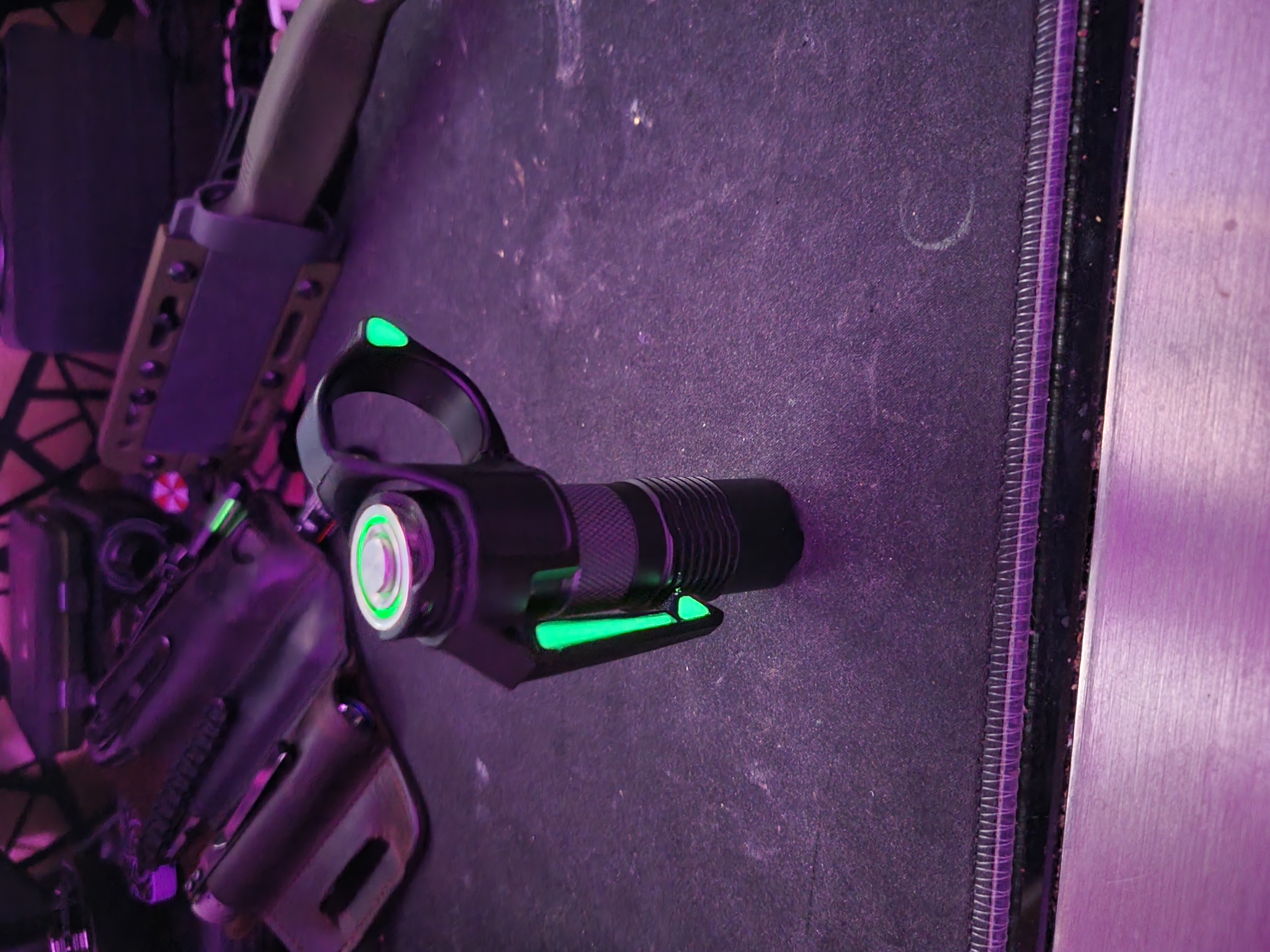

This is my new favorite edc light! Got the cslnm1 and it's a little throw BEAST! Got custom tail switches coming for my S8 and my L21A. And more lights on the way. Simon is a great guy and will help you whenever you need it! Highly recommend this light for a edc in just about any emitter!!!!!
