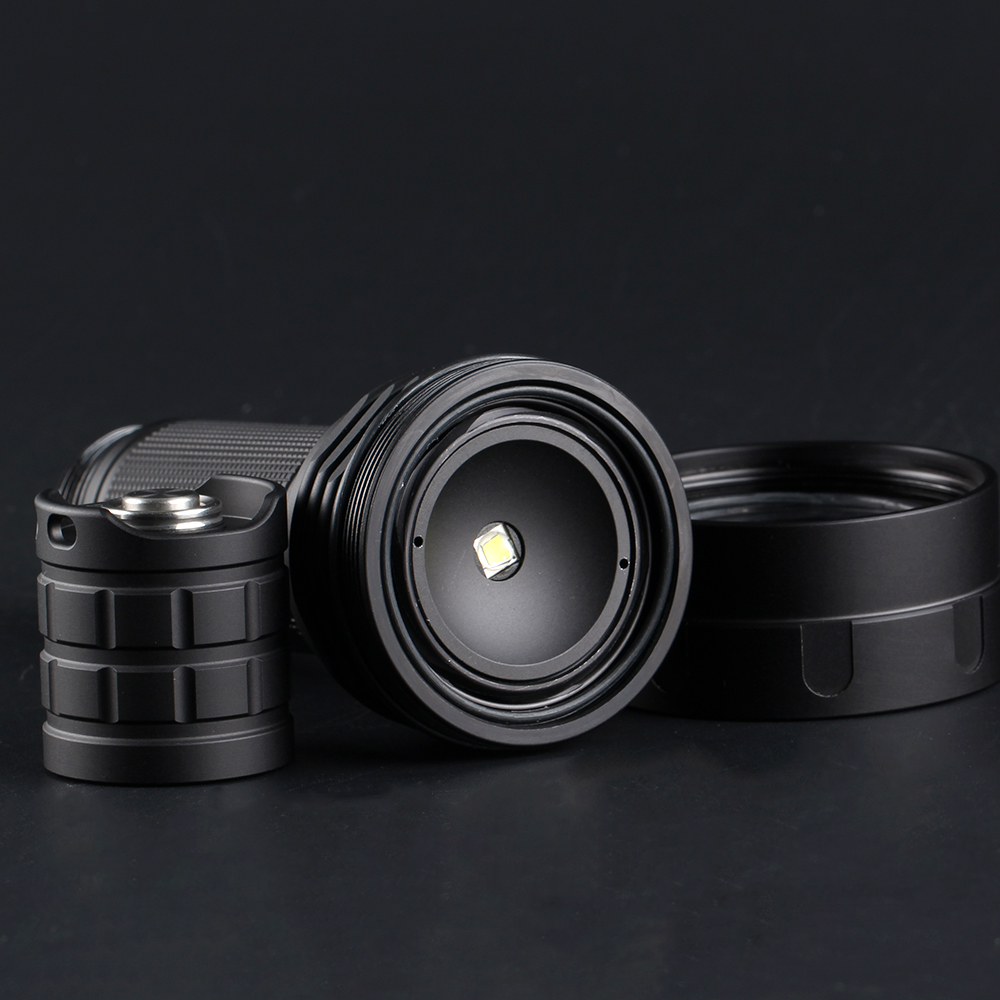

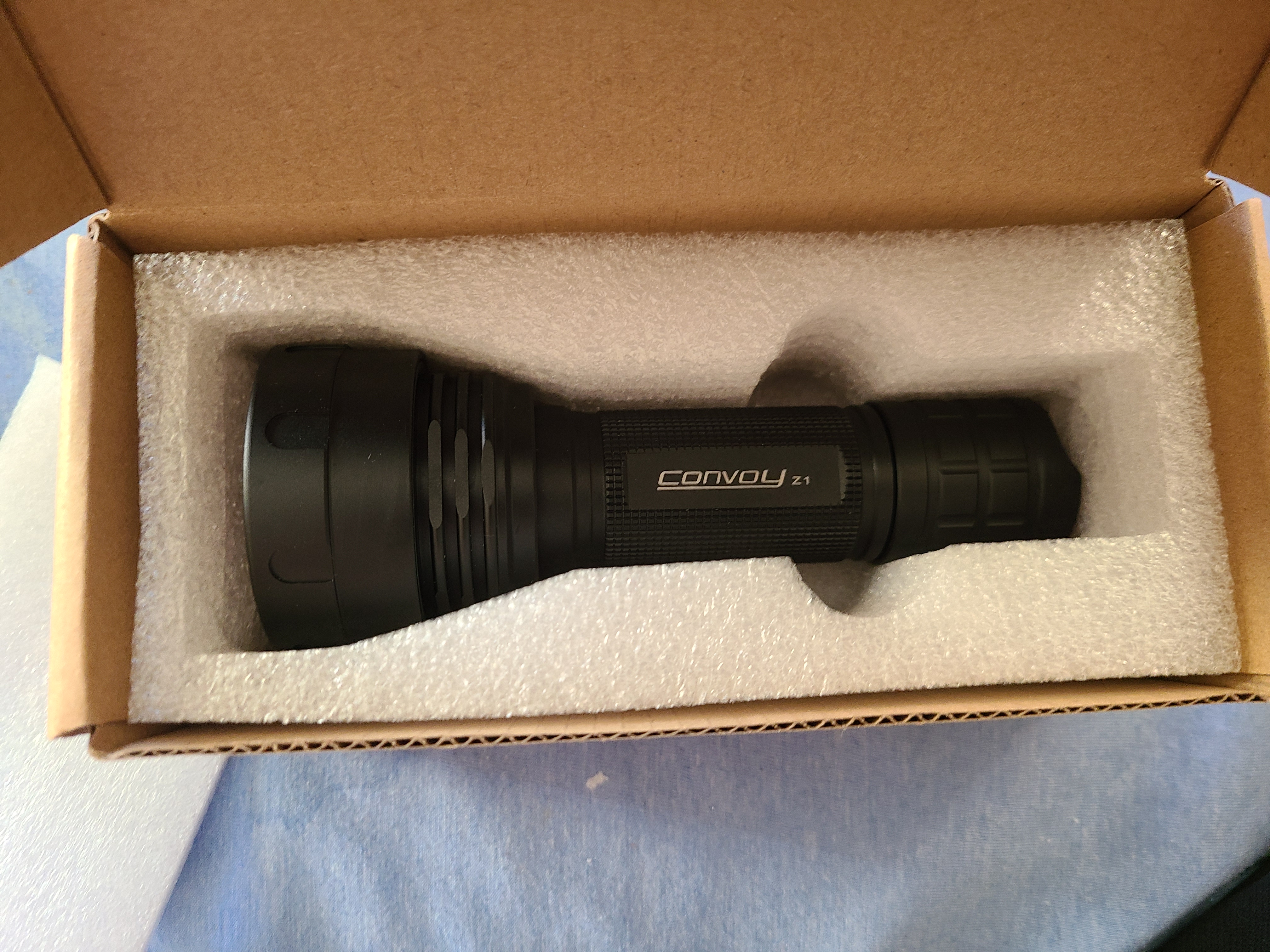

Convoy Z1 21700 flashlight,zoomable

Note: battery is not included
The beam focus can be adjusted to switch between spotlight and floodlight modes, adapting to lighting needs at different distances, both near and far, with versatility and brightness flexibility.
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews

Parameter:

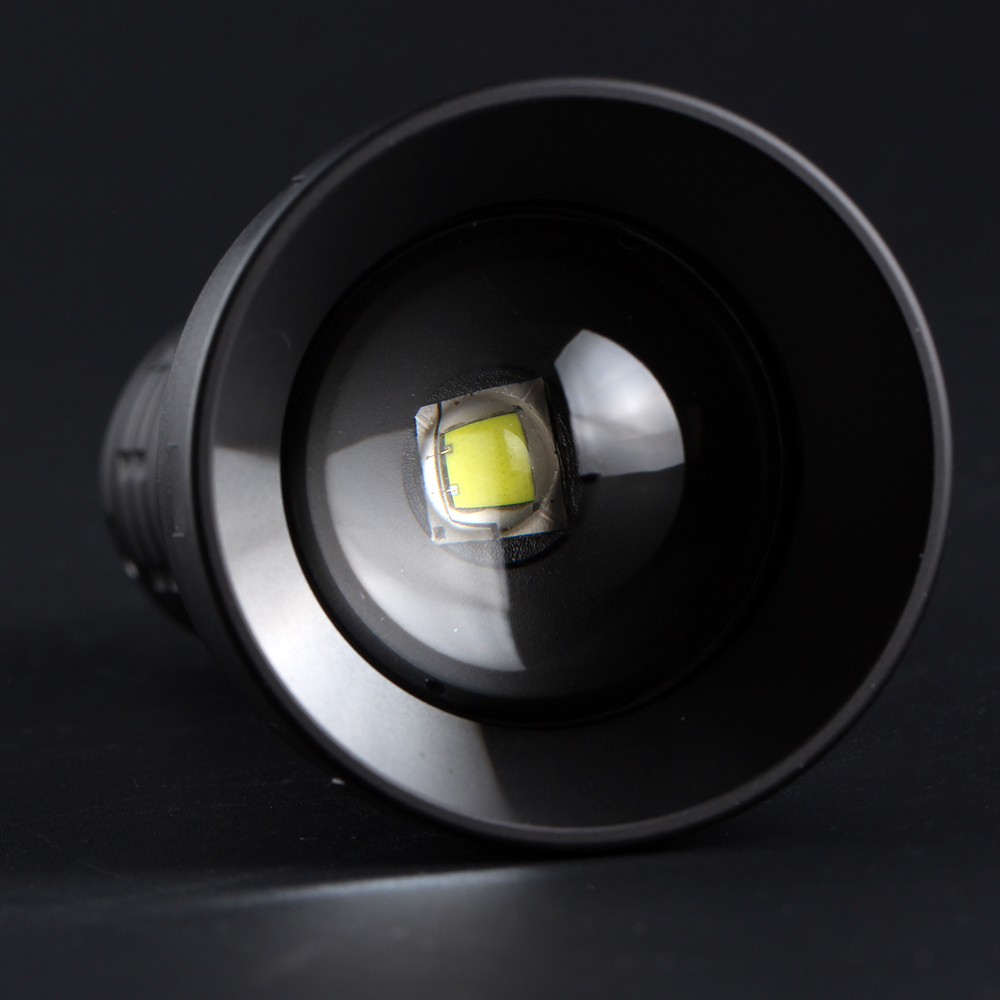

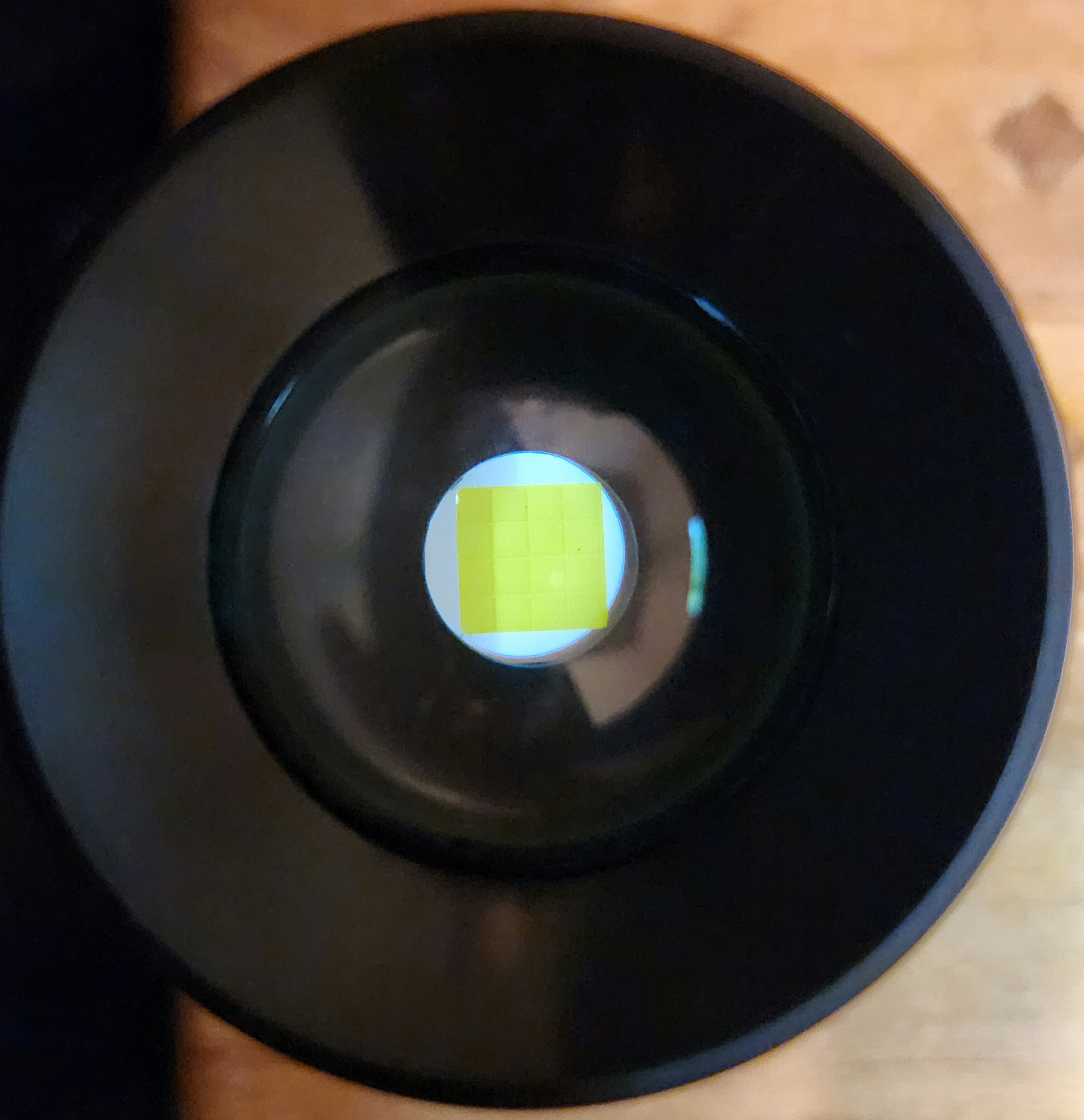

  • LED : 1 * luminus SST40 SFT40 / osram KW CULPM1.TG / B35AM R9080  4500K / 519A R9080

  • FLUX: MAX 2000lm (SST40/SFT40/KW CULPM1.TG) / 1300LM (B35AM/519A)

  • Range/Illuminance: KW CULPM1.TG(804 meters / 162KCD)

  • Mode:4 modes 0.1%-3%-30%-100%/ 12groups

  • Mode memory: yes

  • Battery: 1 * 21700 (not included),The battery length is not more than 71mm

  • Material: aluminum alloy

  • Color : Black

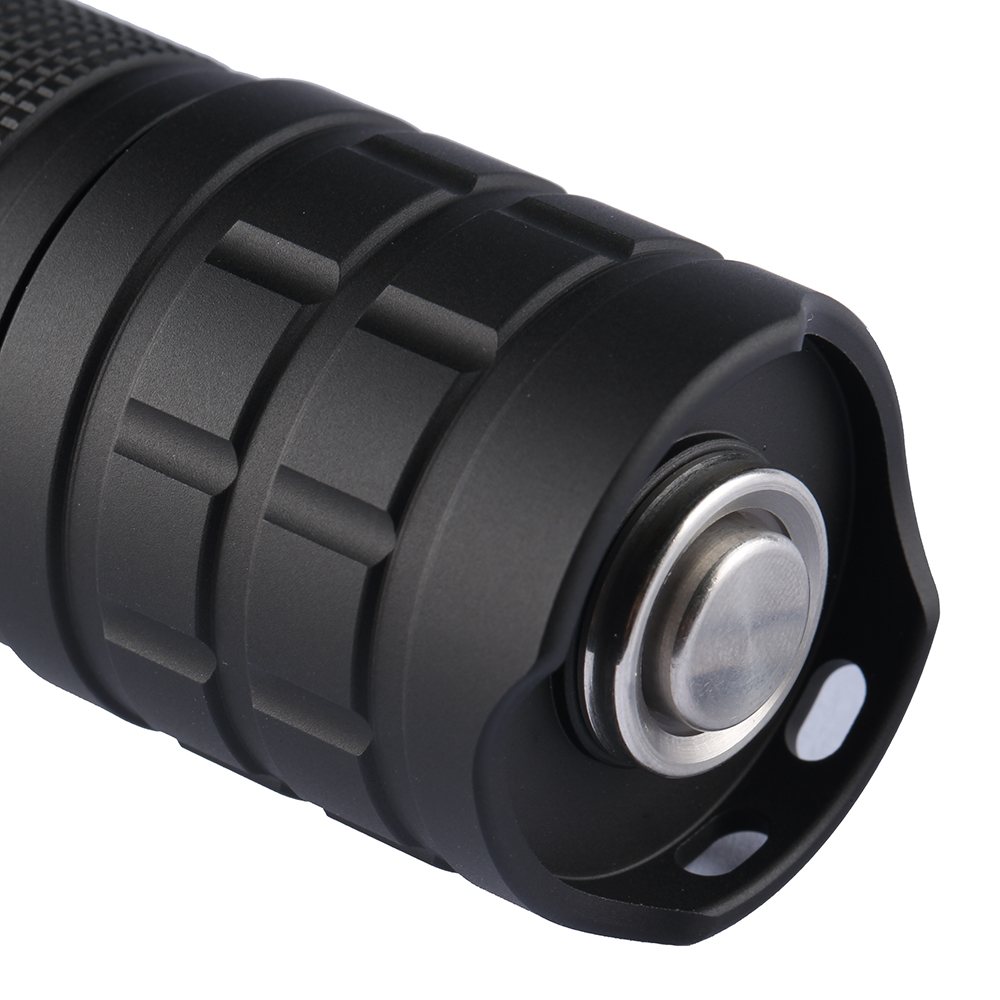

  • Switch type: reverse

  • Lens : Convex lens (high borosilicate glass)

  • Diameter: head 52mm /tail 28.2mm

  • Length: 135.8mm(zoom in)/149.5mm(zoom out)




Driver instructions:(4modes)
 0.1%-3%-30%-100%

Driver (12groups):

12 groups:

1.click the switch to turn the flashlight on/off,tap the switch to select mode

2.if flashlight is turnedon,tap the switch 20 times quicklyto enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

Option 1(normal-flash 1 time + buzz-flash):tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)

-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)

-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)

-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)

-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)

-------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)

-------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

-------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)

-------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)

-------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)

-------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)

-------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)

Option 2(normal-flash 2 times + buzz-flash):tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.
