Home / Convoy S21E purple 21700 flashlight

Convoy S21E purple 21700 flashlight

(5.0)
WISHLIST
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    Basic introduction
    Construction Material: Aluminum alloy,The surface is hard anodic oxidized
    Lens type: gree-coated glass lens
    Reflector: made of aluminium alloy, the reflective surface is vacuum-coated.
    orange peel for 519A , XHP50.3 HI , B35AM , 719A
    smooth for SST40 ,  SFT40
    LED MCPCB: made of copper.
    DTP thermally conductive structure.
    3.0 W/(m·K) thermal grease below the MCPCB.
    Head structure: integrated type (Best structure for conducting heat, but please note that fast heat transfer does not mean fast heat dissipation, which depends on the surface area of the flashlight.)
    Switch: The electronic switch is located on the side of the head, pay attention to the flashlight using the electronic switch has standby current, if it is possible that you will not use the flashlight for more than a week, please loosen the tail of the flashlight to avoid the risk of battery damage.
    Tail: There is a hole at the bottom for installing the lanyard .It does not affect the handstand of the flashlight. Nickel-plated phosphor copper spring inside.
    Electro&optical parameters Driver output:
    (default constant current driver)
    3V 6A for SST40 , SFT40 , 519A , 3V XHP50.3 HI
    6V 2.2A for B35AM , 719A
    6V 3A for XHP50.3 HI
    Driver output:
    (Anduril 1.0 FET)
    3V 8A for SST40 , SFT40, 3V XHP50.3 HI
    3V 6A for 519A
    Driver efficiency: 80%-95%
    Mode: See below for details
    Flux: 1500-2000LM
    Illumination distance: < 100 meters (estimated by the naked eye,  data for reference)
    ? (ANSI standard)
    Runtime: ?
    Related features Low voltage warning: Yes, After a period of alarm, the flashlight will automatically turn off.
    Reverse polarity protection: Yes
    Mode memory: Yes
    Temperature control function: Yes , As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up.
    Tailstand: Yes
    About the battery Battery included: No
    Required battery type: unprotected 21700 lithium battery
    Required battery quantity 1 piece
    Size & weight Length: 116.4mm
    Diameter: 27.3mm
    Weight: net weight  88g (without packaging, batteries, headlight strap
    gross weight 98g (include clip, lanyard, package)
    Accessory: 1* lanyard , 1* clip

    Mode operation instructions(default constant current driver):

    1.click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down

    2.flashlight off, press the button  ——>  moonlight mode  0.01A (0.2%)   [This brightness will not be remembered]

    3.flashlight on or off, 2-click the button  ——>  turbo 100%

    4.flashlight off,3-click the button   ——>  strobe

    5.flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.

    6.flashlight off,5-click the button   ——>  voltage detection  (* means "flash" ,  *** pause ******* means 3.7V, )

    7.flashlight off,6-click the button   ——>  normal ramping mode switch to 4modes 1%-10%-40%-100%

    8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.



     The flashlight has low voltage protection and temperature control protection.

    Mode operation instructions(Anduril 1.0):

  • Customer Reviews
    J***o

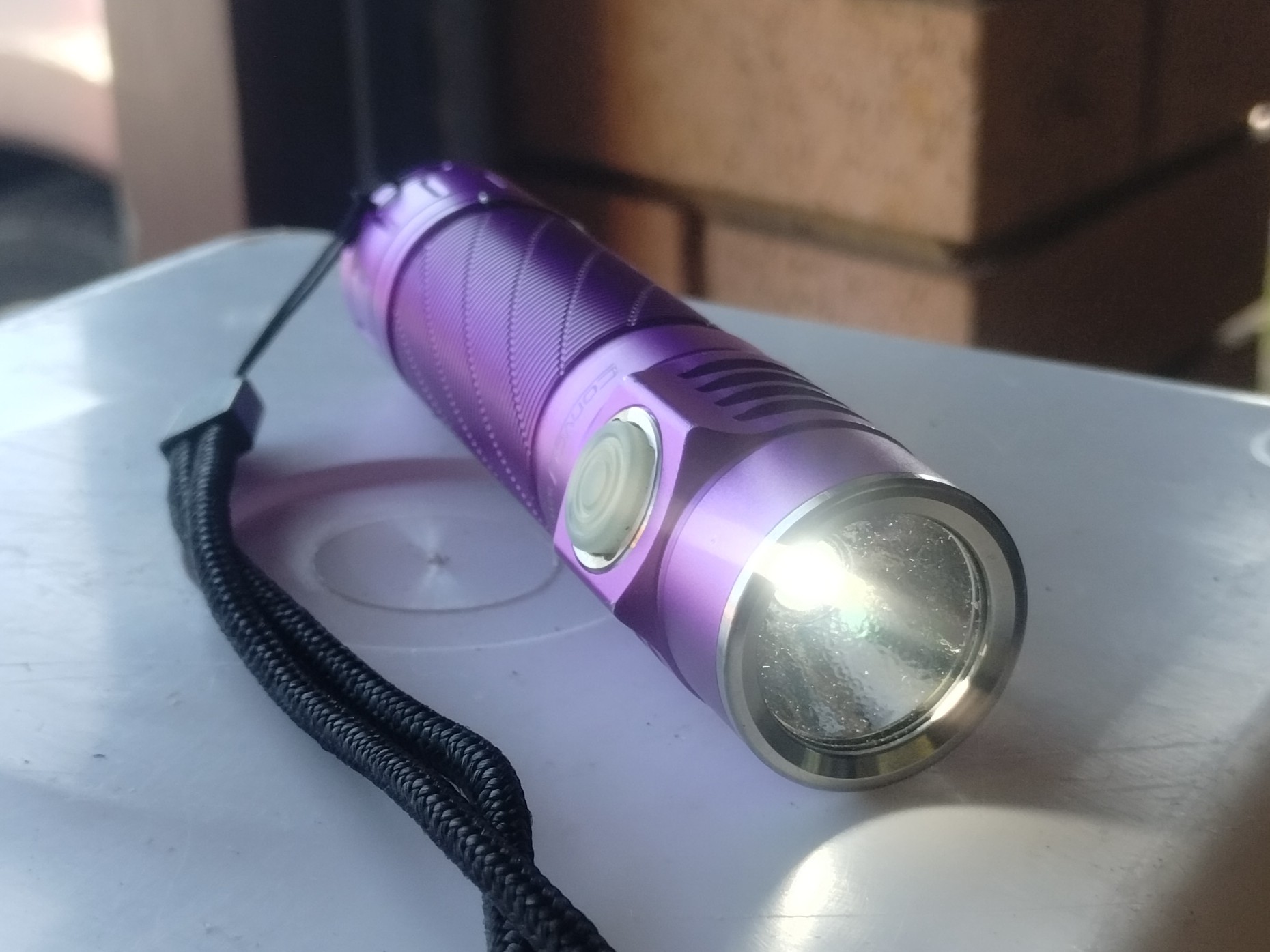

    TL;DR good little sub-100m thrower, B35AM 5K has excellent colour rendering and decent lumen output, runs cool with low power draw. Preface: I use my lights (mostly) for ecology work, so high CRI is a priority over raw light output. Downsides are a bright moonlight mode and logarithmic brightness increase (it increases in apparent brightness rapidly off 0%, then appears to increase slower above 10%), but those are only minor faults that don't detract from the rest of the package. I got this for somebody else since it's beginner friendly (USB-C charging, mode selection is simple) but ended up liking it so much that I kept it. This is optioned with a B35AM, not the most powerful of LEDs, but it throws decently for its size. Its real trick, however, is the colour rendering: I've used many other lights over the last few years, and the B35AM in 5000K has one of the cleanest colour spectrums I've seen in a light. Deep reds render nicely, and all other colours seem rather neutral and clear - it's my go-to light for night ecology work. See the 3rd pic for a comparison with my other warmer light; it's got a nice tint, but the colours are less accurate - in spite of being another high CRI emitter. It has a balanced hotspot that works well to provide usable light out to 100m (it throws further, but not usefully so for me), making it very handy to light up subjects in a tree, down pathways, etc. Spill from the hotspot is handy up close. Thermal management is pretty good with the boost-driven B35AM; it'll hold turbo for quite a while before getting too hot to use on warm Australian nights (I've gone minutes easily on colder nights), and maintains an excellent run time with its modest current draw. Even an older Samsung 40T provides a good runtime with it, the lower power draw means you can get away with a good energy cell (BAK 65E, SA112, etc), although I opted for a tabless power cell (RS50 in my case) as I share cells with other lights.

    Vladi***********bakov

    Отличный фонарь с заливным светом! Диод 519А, температура 4000к. Отличный вариант на ближних дистанциях, с хорошей емкостью аккумулятора 21700. Очень удобная и мягкая кнопка управления. Фиолетовый цвет просто шикарный! Родной безель гладкий. Тот что на фото, установлен отдельно. Спасибо Саймон!!!

    Sa*****din

    Good
