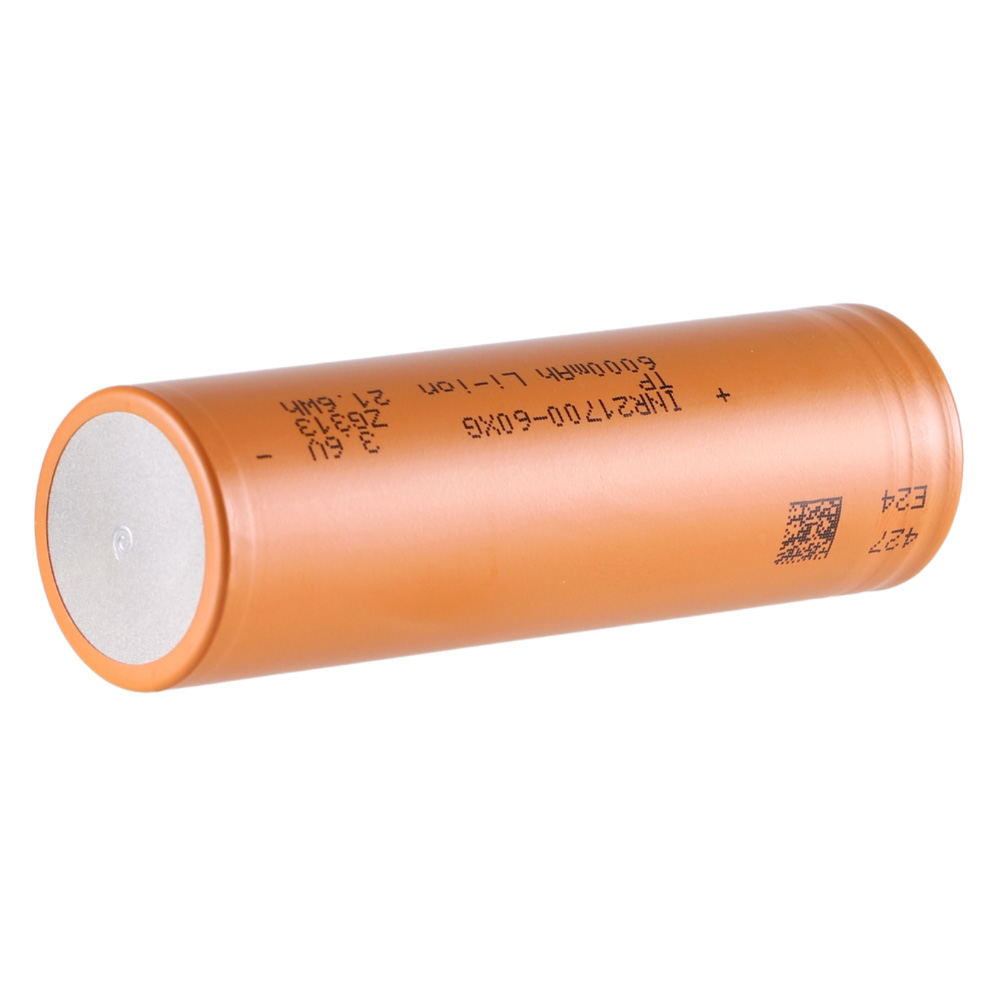

Tenpower INR21700-60XG 6000mAh 21700 lithium battery

WISHLIST
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    TENPOWER INR21700-60XG
    21700 Lithium-Ion Cell  |  6000mAh Typical  |  3.6V Nominal  |  High-Power Flat Top
    The TENPOWER INR21700-60XG is a high-energy 21700 cylindrical lithium-ion cell designed for professional battery pack builders. Typical capacity is 6000mAh (6.0Ah) at 3.6V nominal, delivering about 21.6Wh per cell and around 300Wh/kg gravimetric energy density. It combines energy-cell capacity with power-cell current capability for e-mobility, power tools, drones, robotics, and custom pack projects.
    Key Features
    • Typical capacity 6000mAh / 6.0Ah
    • Minimum capacity 5850mAh
    • Nominal voltage 3.6V (charge to 4.20V)
    • Energy per cell approx. 21.6Wh
    • Energy density approx. 300Wh/kg    		 • High continuous discharge capability
    • Pulse discharge up to 160A / 3s
    • Low internal resistance design
    • NCA cathode + Graphite/SiC anode
    • Unprotected flat-top industrial cell
    Technical Specifications
    Brand / Model TENPOWER / INR21700-60XG
    Cell Type Cylindrical 21700 Li-ion (INR), rechargeable
    Chemistry Cathode: NCA (Ni-based)  |  Anode: Graphite / Silicon Carbide (Gr/SiC)
    Typical Capacity 6000mAh (6.00Ah)  — charge 0.5C / 3A to 4.20V, 100mA cut-off; discharge 0.2C / 1.2A to 2.50V
    Minimum Capacity 5850mAh (same standard charge / discharge conditions)
    Nominal Voltage 3.60V
    Charge Voltage 4.20V
    Discharge Cut-off Voltage 2.50V  (do not discharge below 2.50V)
    Nominal Energy 21.6Wh
    Energy Density Approx. 300Wh/kg gravimetric  |  Approx. 850Wh/L volumetric
    Standard Charge CCCV 3A (0.5C) to 4.20V, 100mA cut-off
    Max. Charge Current 16A (within specified temperature limits)
    Max. Continuous Discharge 40A without temperature cut-off; 60A with 75°C cell-surface temperature cut-off. Always size thermal management and BMS for the intended load.
    Pulse Discharge 160A for 3 seconds
    Internal Resistance Approx. 5mΩ AC @ 1000Hz (25±3°C, ~30% SOC). Marketing / pack-level AC IR may be listed as <3mΩ depending on test method.
    Cycle Life (reference) Approx. 70% of initial capacity after 200 cycles (charge 6A to 4.20V CCCV 100mA cut-off; discharge 40A to 2.50V or 75°C cut-off at room temperature). Actual life depends on current, temperature, and DOD.
    Dimensions Diameter approx. 21.50mm  |  Height approx. 70.50mm  (21700 format)
    Weight Approx. 72–73g typical; 76.0g maximum
    Terminal / Protection Flat top  |  Unprotected (no PCB). Must be used with a suitable BMS / protection circuit in the finished pack.
    Welding Note Spot-weld nickel strip only. Prohibited welding-area diameter on the positive cap is approx. 3.5mm. Do not solder directly onto the cell.
    Operating Temperature (Ambient) Charge: 0°C to 45°C  |  Discharge: −20°C to 60°C
    Cell Surface Temperature Charge: 0°C to 60°C (recommended restart below 45°C)  |  Discharge: −20°C to 80°C (recommended restart below 60°C)
    Storage 1 year: −20°C to 25°C  |  3 months: −20°C to 45°C  |  1 month: −20°C to 60°C. Store near 30% SOC for long-term storage. Humidity approx. 60% RH.
    Origin China  |  Manufacturer: TENPOWER (Huaian Tenpower Lithium Co., Ltd.)
    Recommended Applications
    Custom lithium battery packs  •  E-bikes / e-scooters / light EV  •  High-drain cordless power tools  •  Drones, robotics, and automation  •  Motorsport / high-current mobility  •  Energy storage and backup systems (with proper BMS and thermal design)
    Not intended for standalone use in flashlights, e-cigarettes, or any device without a properly designed protection circuit.
    Pack Building Notes
    1. This is a bare industrial cell. Always integrate a BMS matched to series/parallel count, charge voltage (4.20V/cell), and current.
    2. High current requires low-resistance nickel, quality spot welds, adequate busbars, and thermal monitoring. Series resistance dominates losses at 40–60A.
    3. Treat 60A continuous as a thermally limited rating. Use a 75°C surface cut-off (or more conservative limit) and sufficient airflow / heat sinking.
    4. Balance cells before assembling a pack. Do not mix different models, ages, or capacities in the same series string.
    5. Spot-weld only. Direct soldering can overheat the cell and damage internal structure.
    Safety Warnings
    • Unprotected high-energy lithium-ion cell. Misuse can cause fire, burns, or explosion.
    • Always use a BMS. Never short-circuit, overcharge, over-discharge, puncture, crush, or expose to fire / water.
    • Never carry loose cells in a pocket, bag, or with keys / coins. Use an insulating case for storage and shipping.
    • Do not use if the wrapper, insulator, or can is damaged, dented, leaking, or swollen.
    • Charge only with a lithium-ion charger set to 4.20V per cell. Do not leave charging unattended.
    • Keep away from children. For professional pack assembly only.
    • Specifications are manufacturer typical values. Actual capacity and current capability vary with temperature, age, and pack design. This listing is not a substitute for the official datasheet.
    Package Includes
    TENPOWER INR21700-60XG 21700 lithium-ion cell(s) × quantity selected at checkout.
    Cells are shipped in protective packaging. Accessory case / insulator is included only if shown in the product photos or SKU options.
