High-Intensity SMD LED

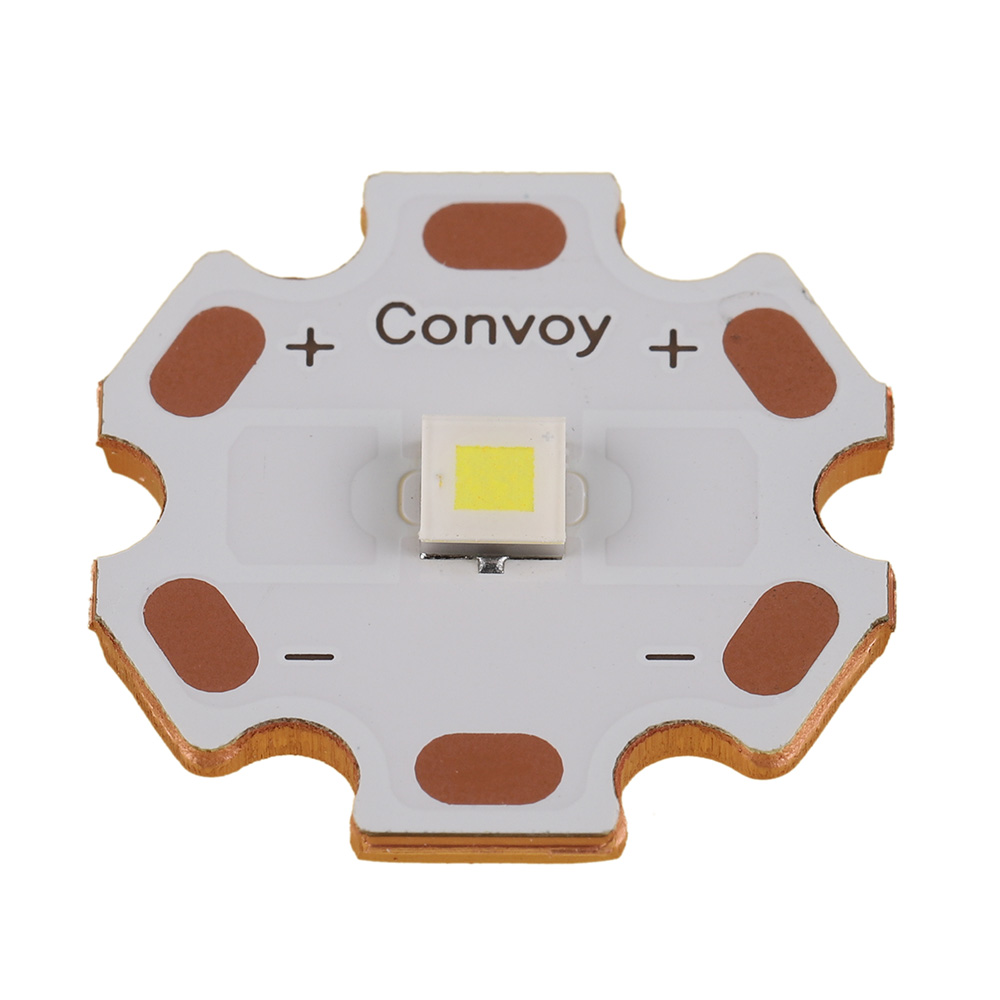

XPL HI LED
A compact, high-intensity LED engineered for strong candela and precise beam control through secondary optics—ideal for portable and directional lighting designs.
3.45 mmSquare package3.0 AMaximum drive current115°Typical viewing angle0.5 °C/WJunction-to-solder thermal resistanceFocused performance
High intensity from a compact optical source
XP-L HI combines a small light-emitting surface with high single-die output, helping optical systems achieve tighter beams, longer throw and efficient use of reflectors or lenses.

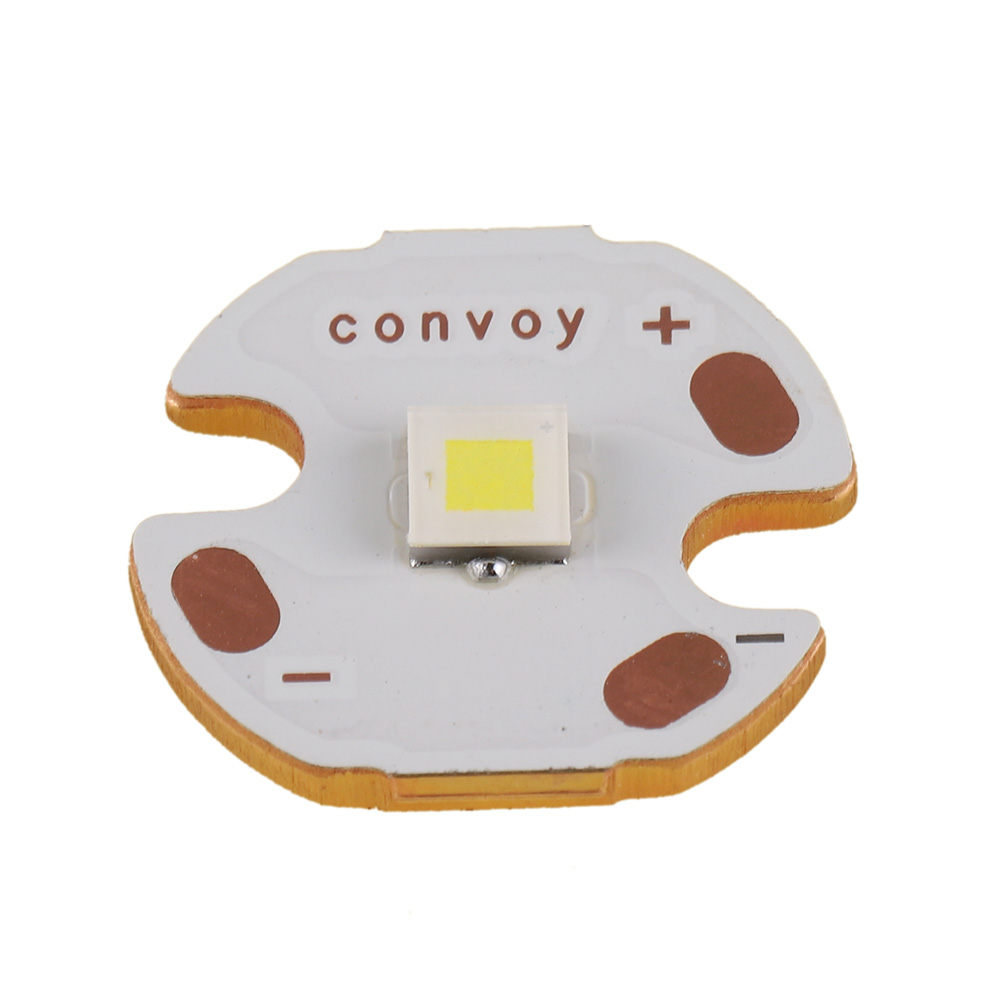

01 02 Compact XP footprint
The 3.45 × 3.45 mm package simplifies integration where board space and optical alignment both matter.
03 Efficient thermal path
Low junction-to-solder thermal resistance helps move heat into the PCB when paired with a properly designed thermal system.

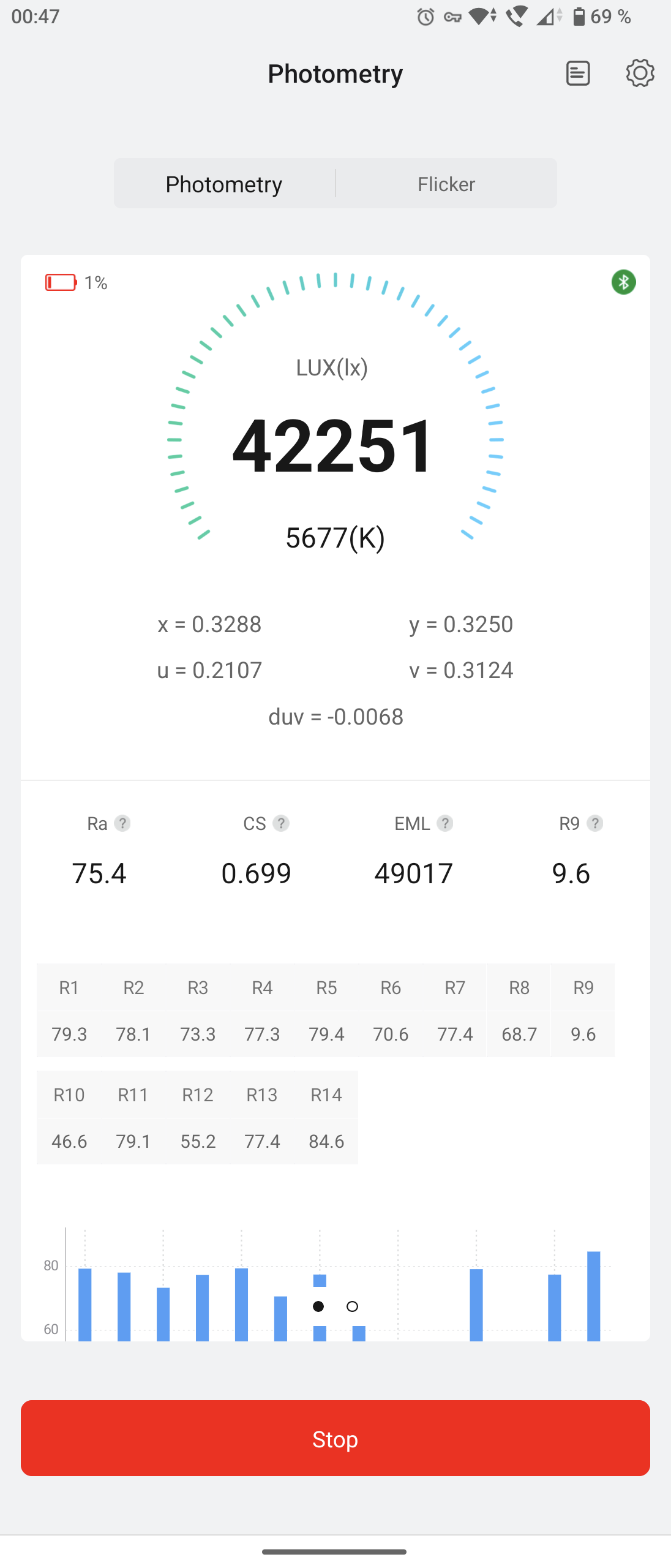

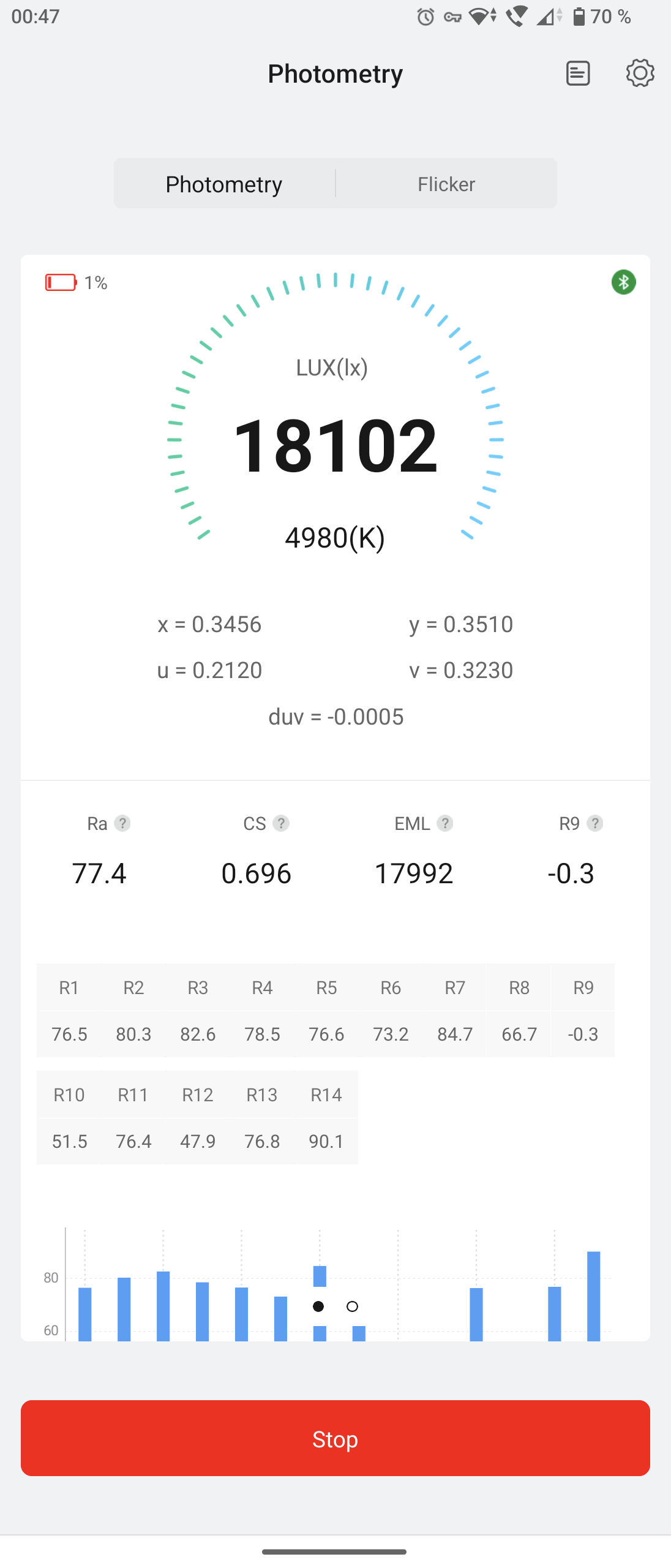

04 Flexible white-light options
Available across 2700–6500 K with multiple CRI options for different beam, color and application requirements.
05 Production-ready SMD format
Reflow-solderable construction supports automated assembly and scalable manufacturing workflows.
06 Order-specific documentation
Compliance documents and material declarations can be supplied for supported part numbers and production batches.
Technical overview
Series reference specifications
Values below describe the XP-L HI product family. Final performance depends on the complete order code, flux bin, CCT, CRI, junction temperature and thermal design.
Package size 3.45 × 3.45 mm Maximum DC drive current 3000 mA Forward voltage 2.79 V typical; 3.25 V maximum at 1050 mA, Tj = 85 °C Viewing angle 115° typical, FWHM Thermal resistance 0.5 °C/W, junction to solder point CCT range 2700–6500 K, order-code dependent CRI options <70, 70, 80 and 90, depending on order code Maximum junction temperature 150 °C Assembly Surface mount; reflow solderable Thermal path Electrically neutral Applications
Built for controlled, directional light
- High-performance flashlights
- Headlamps and bike lights
- Spotlights and search lights
- Portable work lights
- Outdoor directional lighting
- Compact optical modules
Match the LED to your optical and thermal design
Contact us with your target CCT, CRI, flux bin, quantity and application. Samples are recommended before volume production.
